Huebner Road EESI Segmented Block Bridge
The project consisted os timber bridge demolition and extensive amount of excavation. The original concrete header walls were left in place.
24" Reinforced Concrete Pipe installed with cast-in-place collar. Bridge was constructed from segmented block. 3/4" limestone was used for backfill. Class C Curb and Gutter and 12" Thick Concrete Driveway. No wildlife were harmed during construction. No trees were removed and no trees were harmed during construction. Project delivered on time 11/2023. Zero infractions fines, or environmental fees.
Huebner Rd EESI Existing Timber Bridge

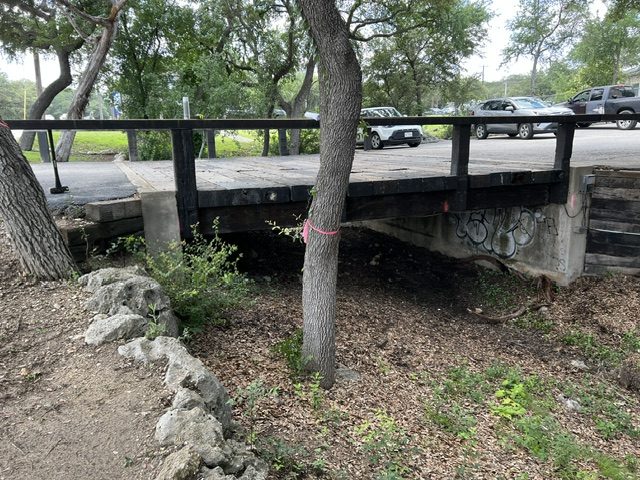

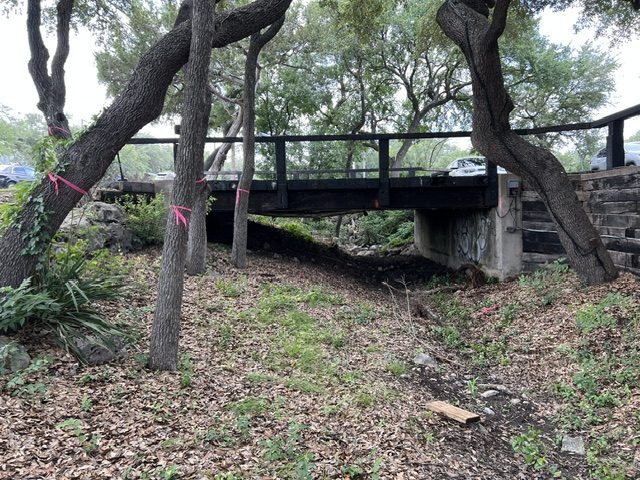

Existing Timber Bridge

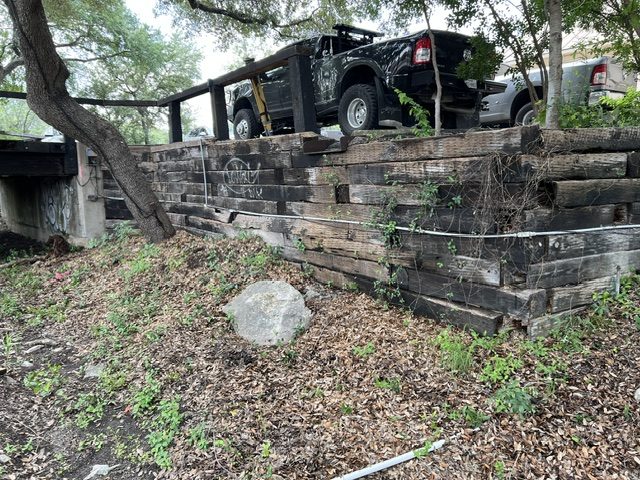

Existing Timber Retaining Wall

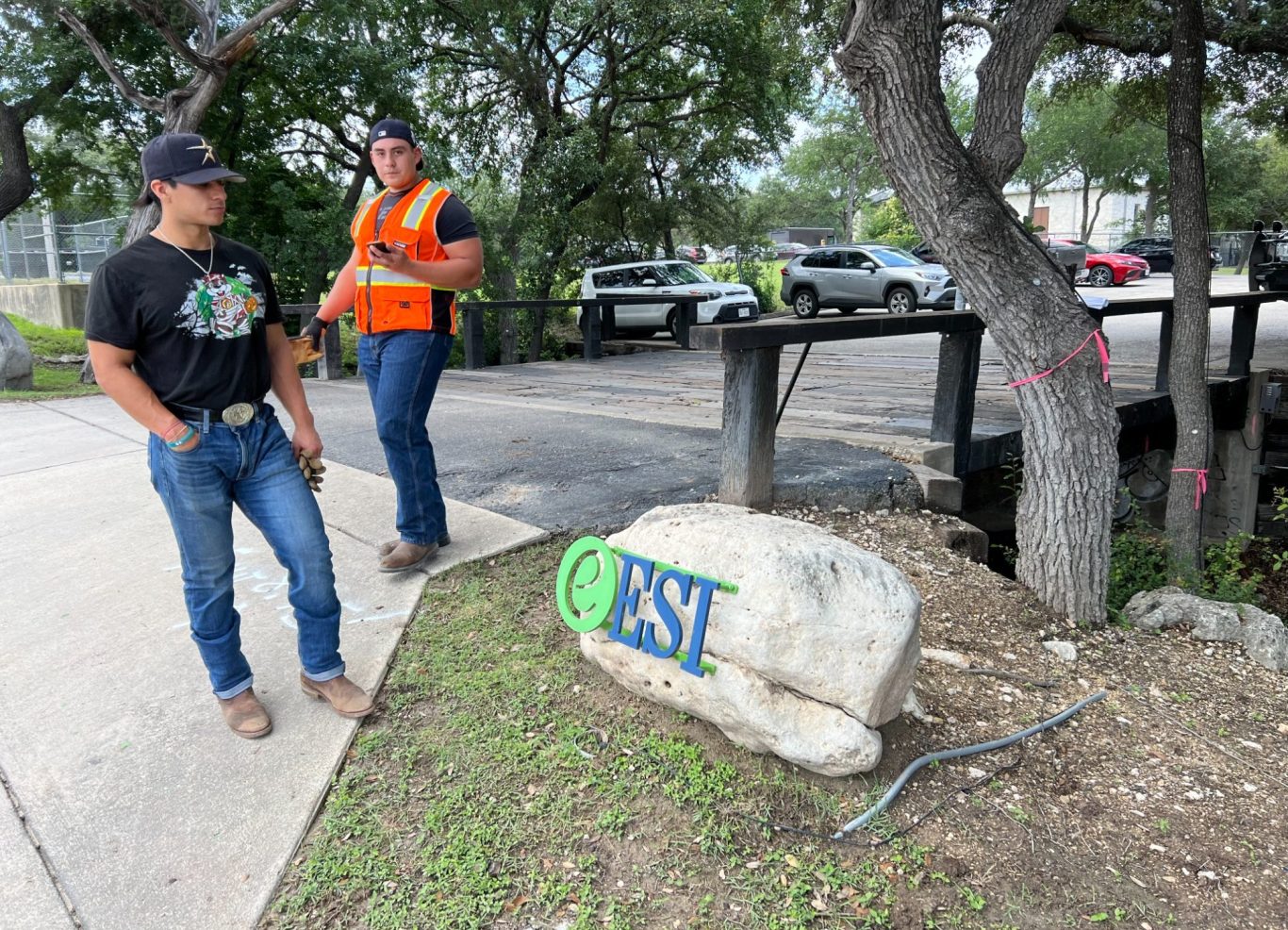

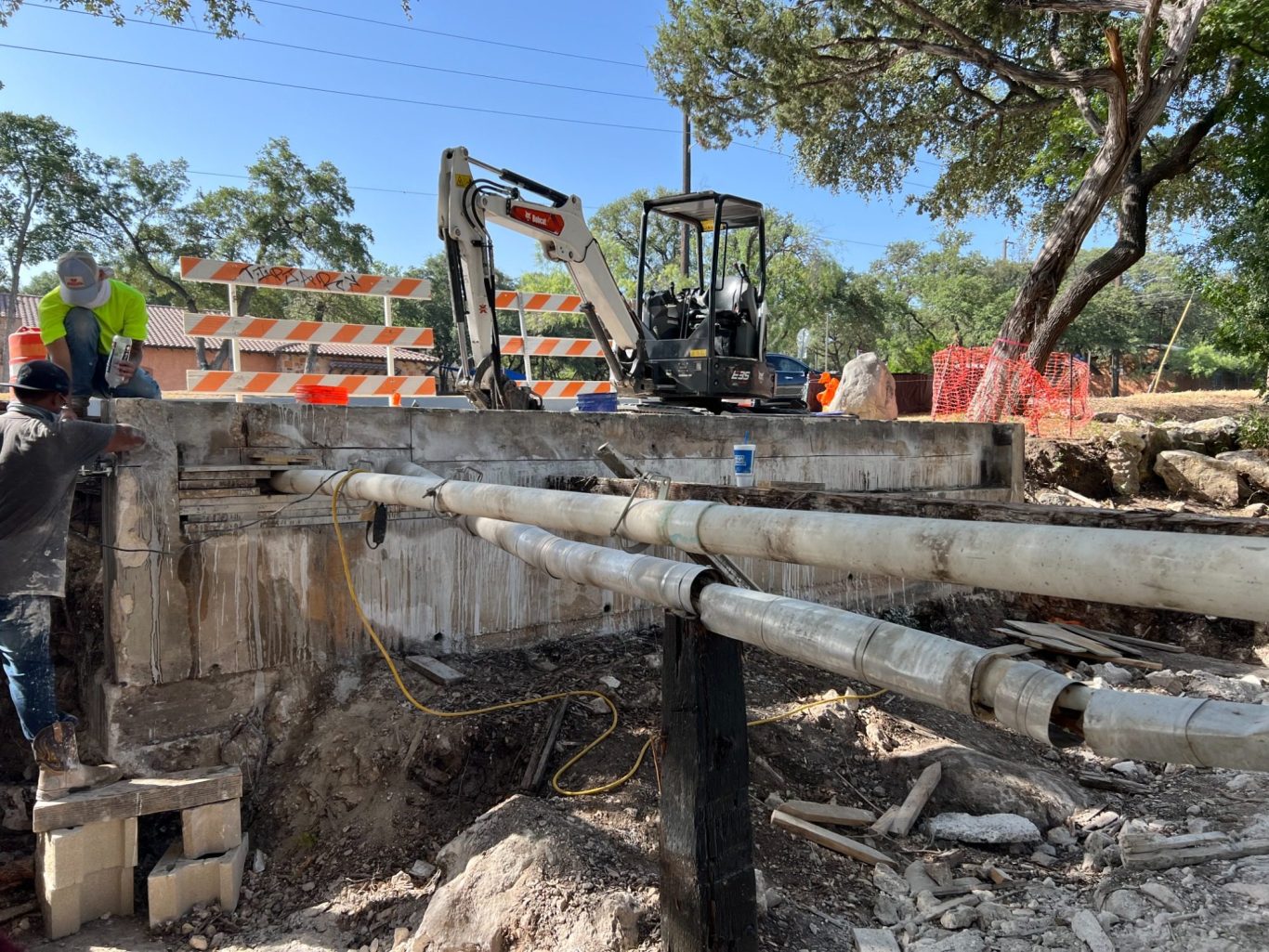

Max and Anthony Planning Bridge Demolition

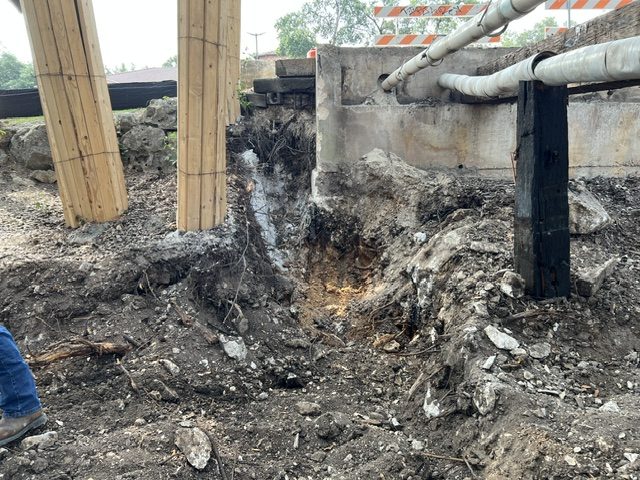

Excavation 24" Below Grade

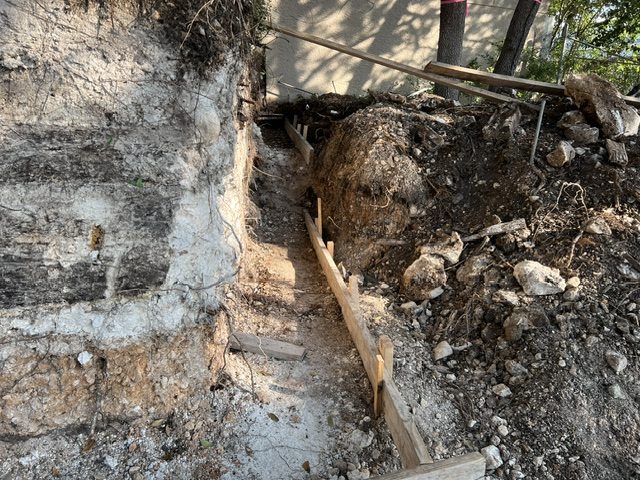

Timber Forms Set 24" Below Grade

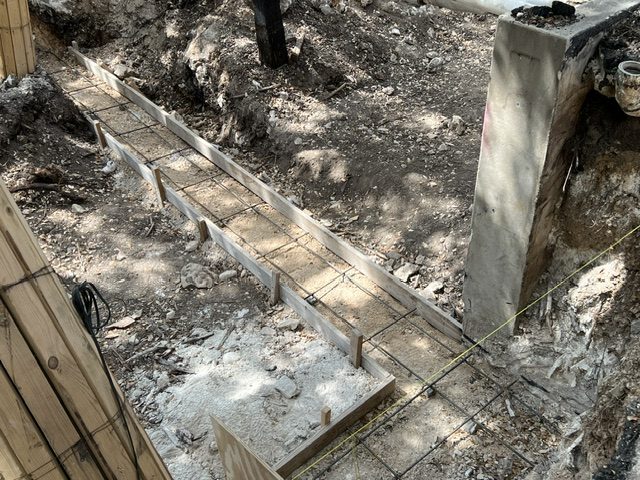

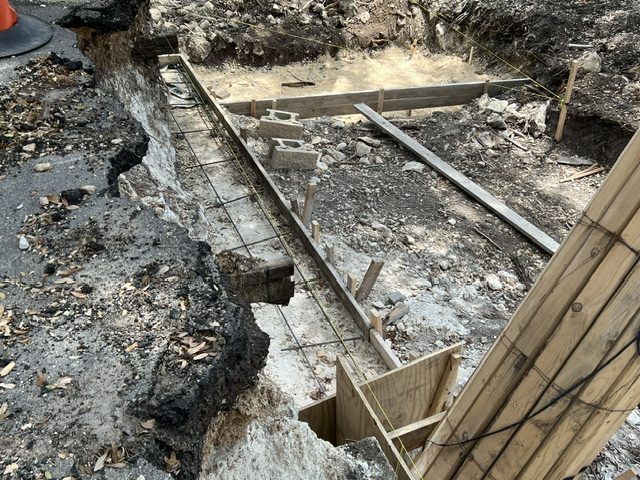

Timber Forms With #5 Rebar
Timber Forms With #5 Rebar
Timber Forms With #5 Rebar

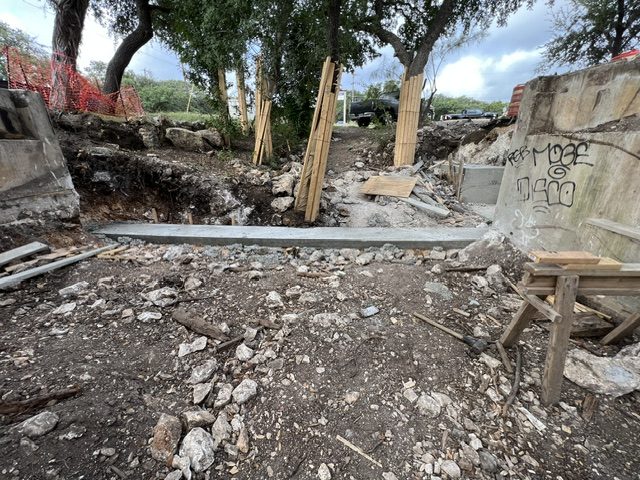

130 LF x 24" Wide x 6" Thick Floating Concrete Footer

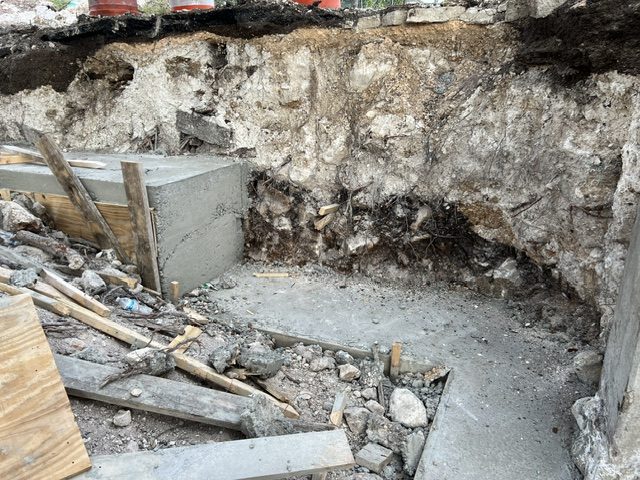

4' High Concrete Step used to Eliminate Segmented Block Vertical and Horizontal Cutting

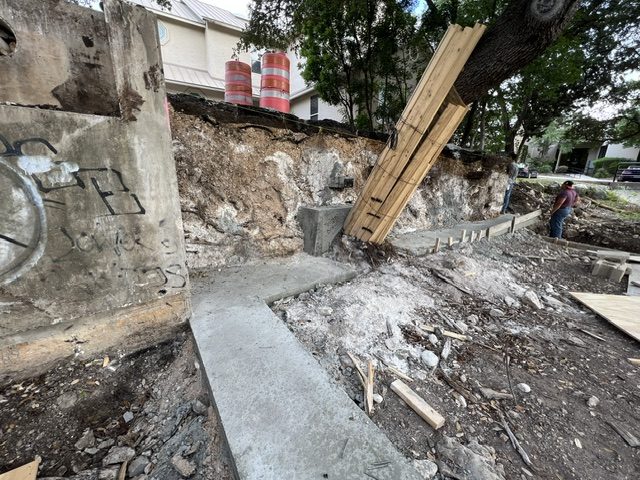

Floating Concrete Footer Perpendicular To North and South Headwalls at East End

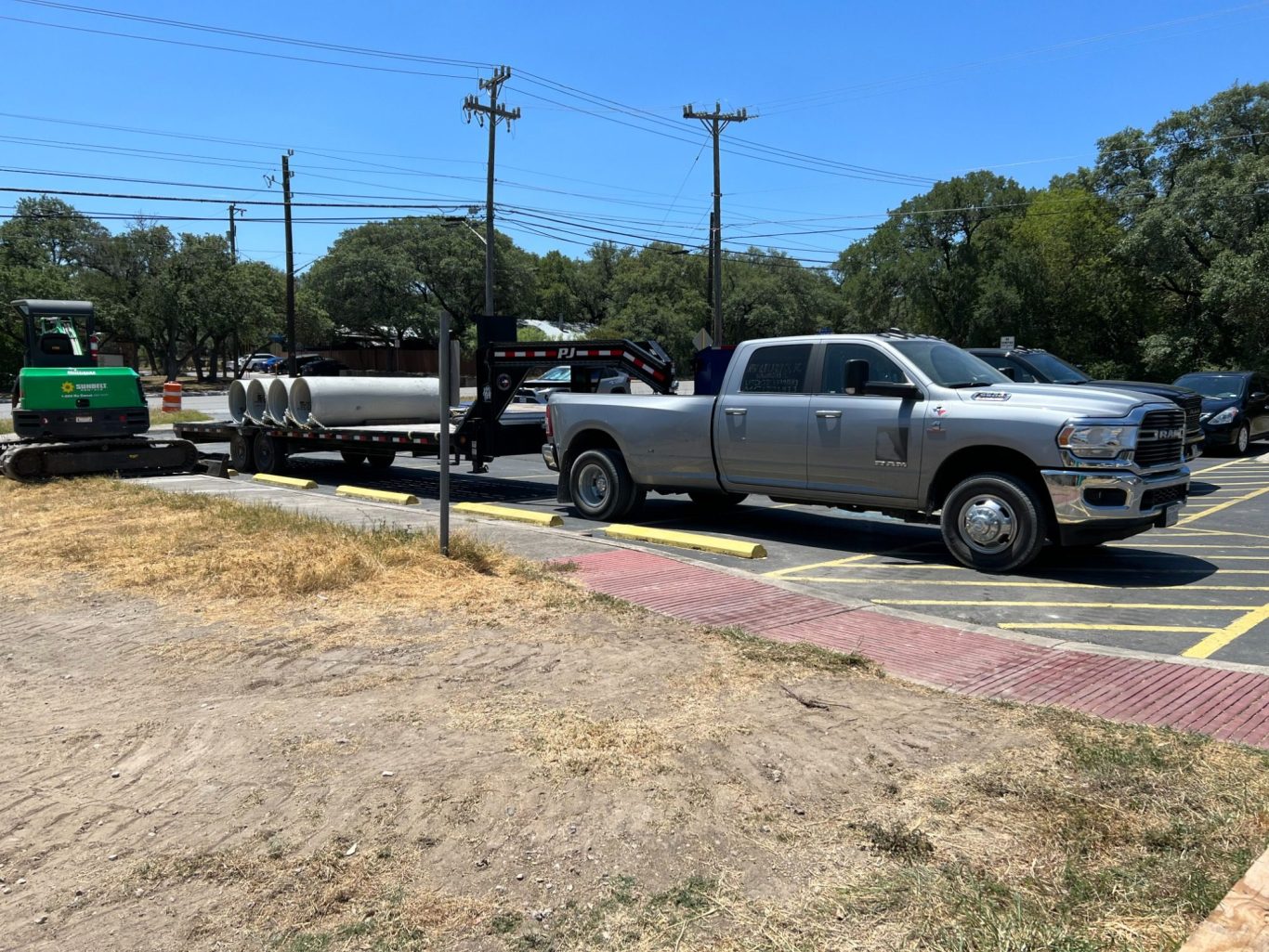

Reinforced Concrete Pipe Delivered

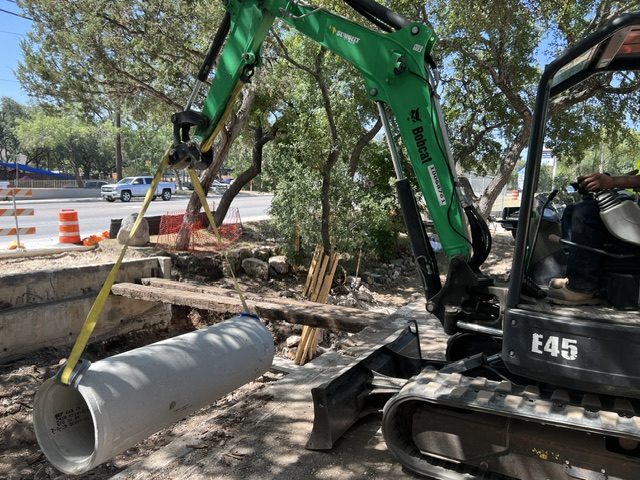

24" RCP Installation

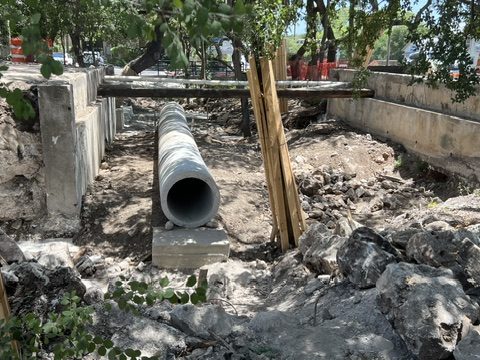

RCP Installed at 2% Slope Toward East End

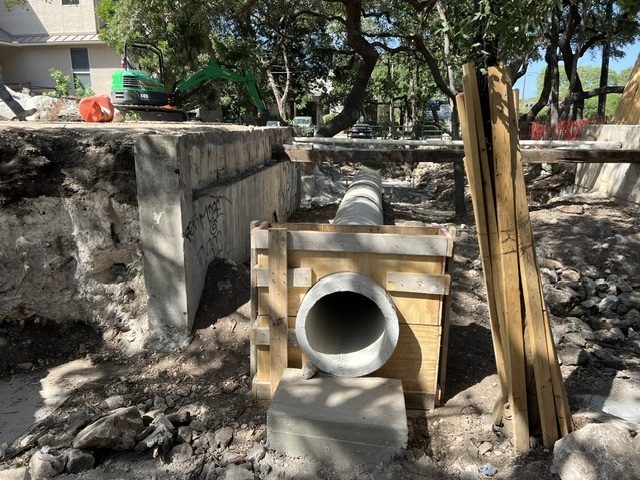

Timber Forms for 5' x 5' RCP Collar
Saw Cut to Remove 12" Headwall Height

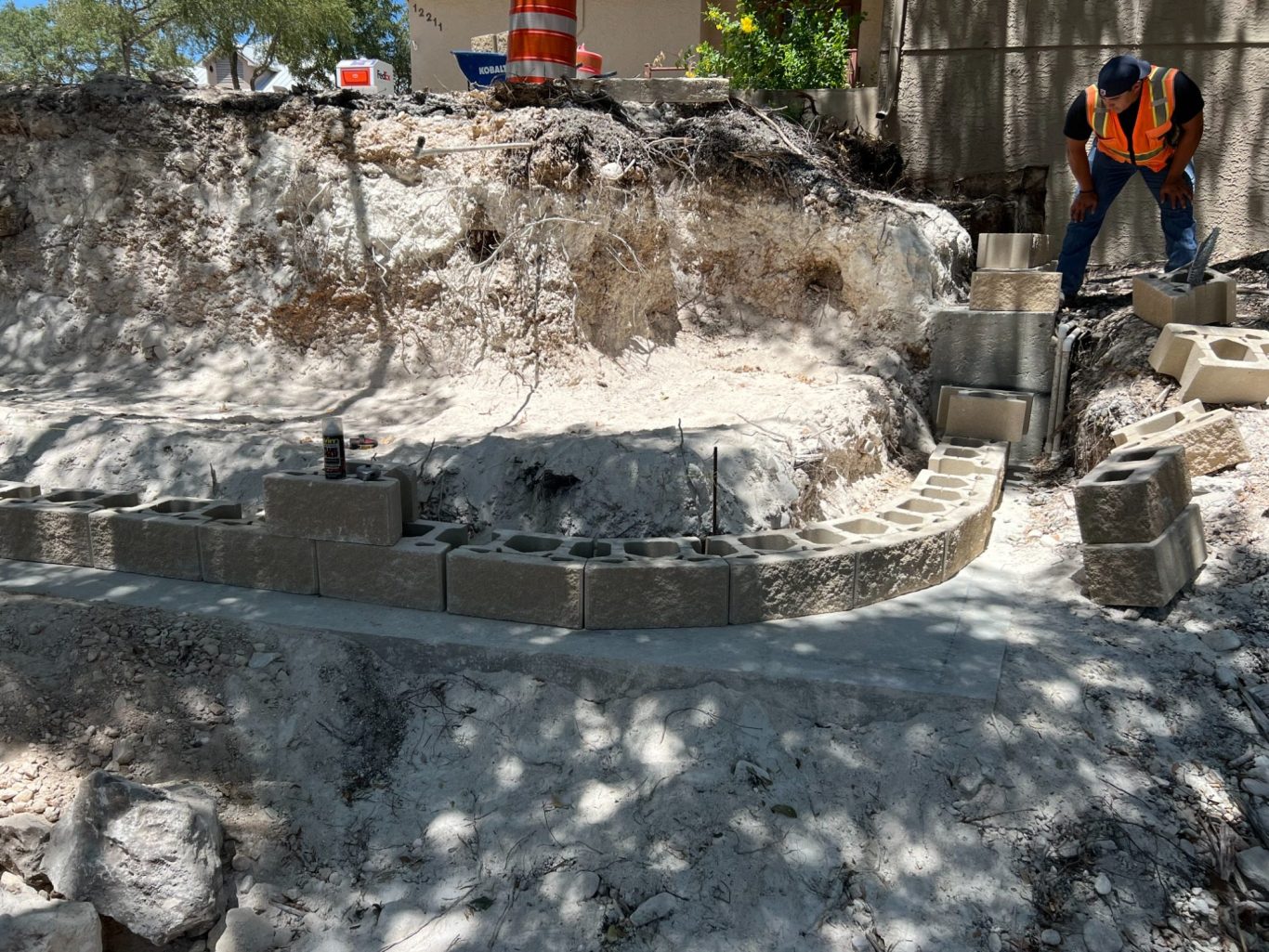

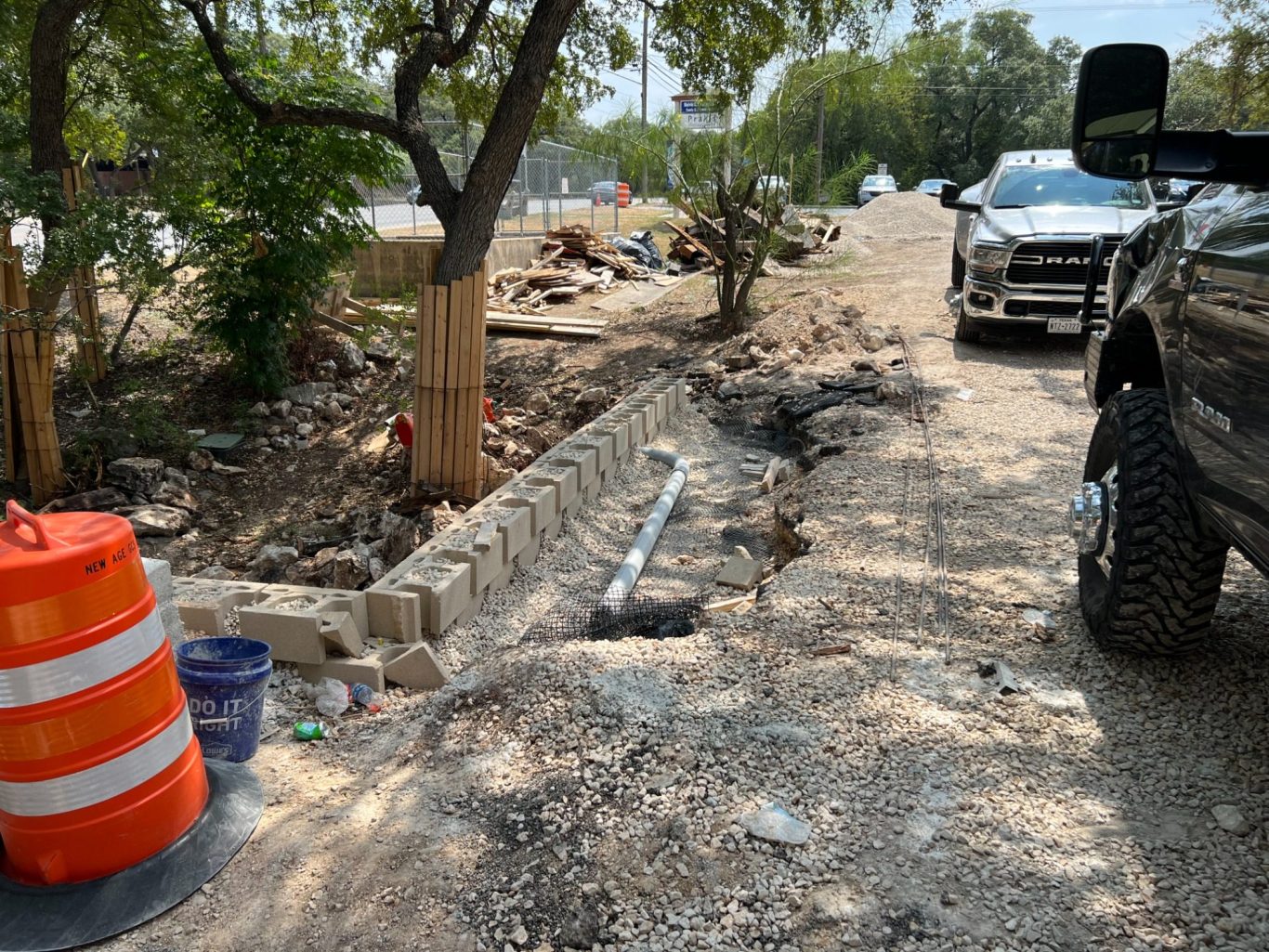

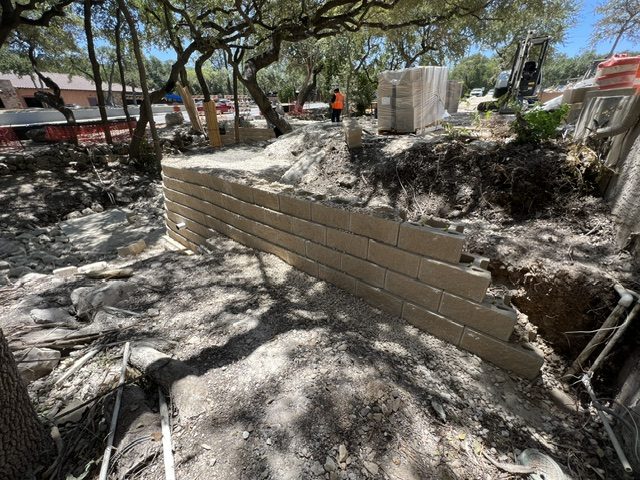

First Block Course Layout with Radius Corner

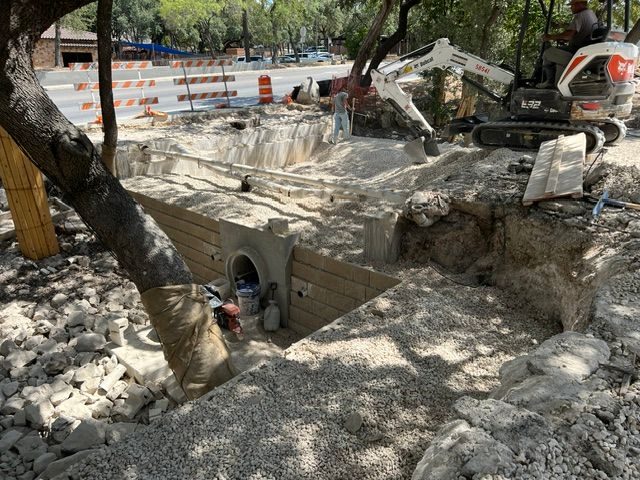

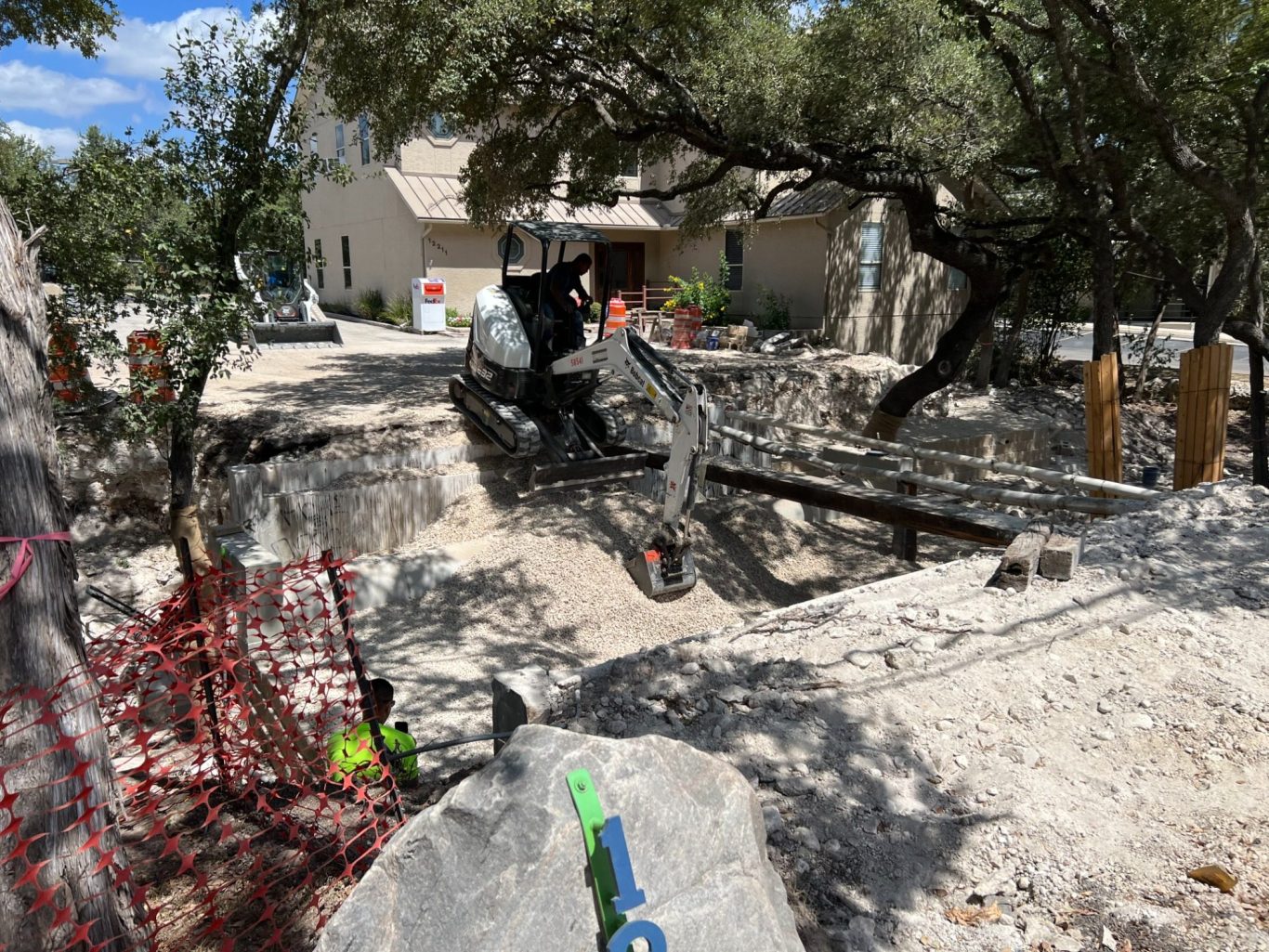

Compact Machinery Backfill at Bridge
Compact Machinery Backfill at Bridge
3/4" Limestone Backfill

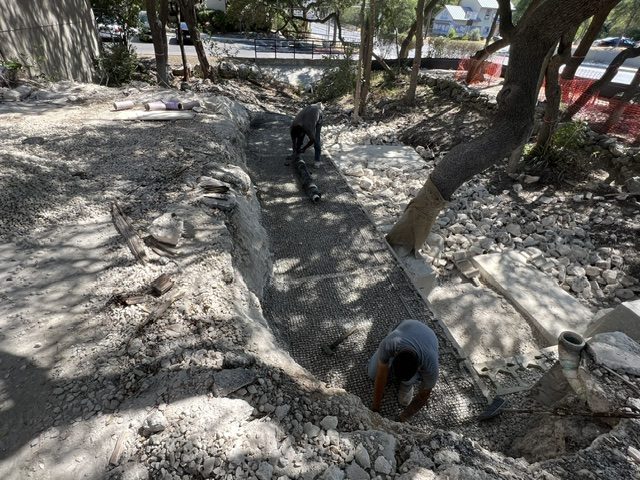

Structural Geogrid Installed At Two Foot Wall Height Section

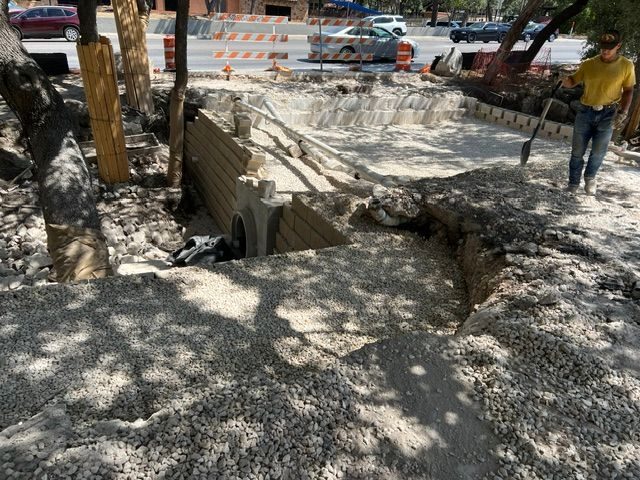

At 4.5' Height Segmented Block Wall with Geogrid, and 3/4" Limestone Backfill
3/4" Limestone Backfill

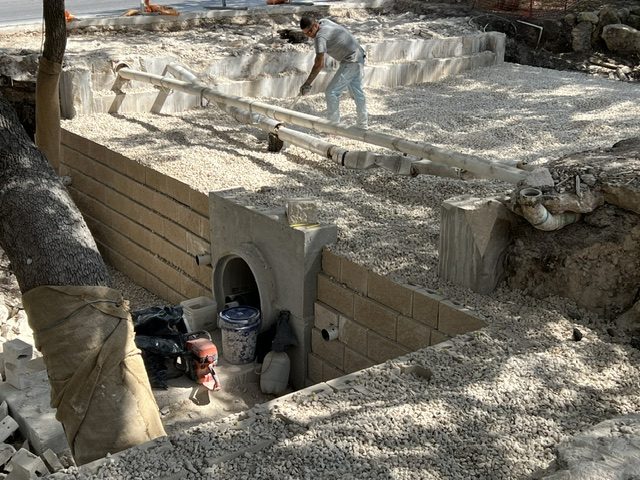

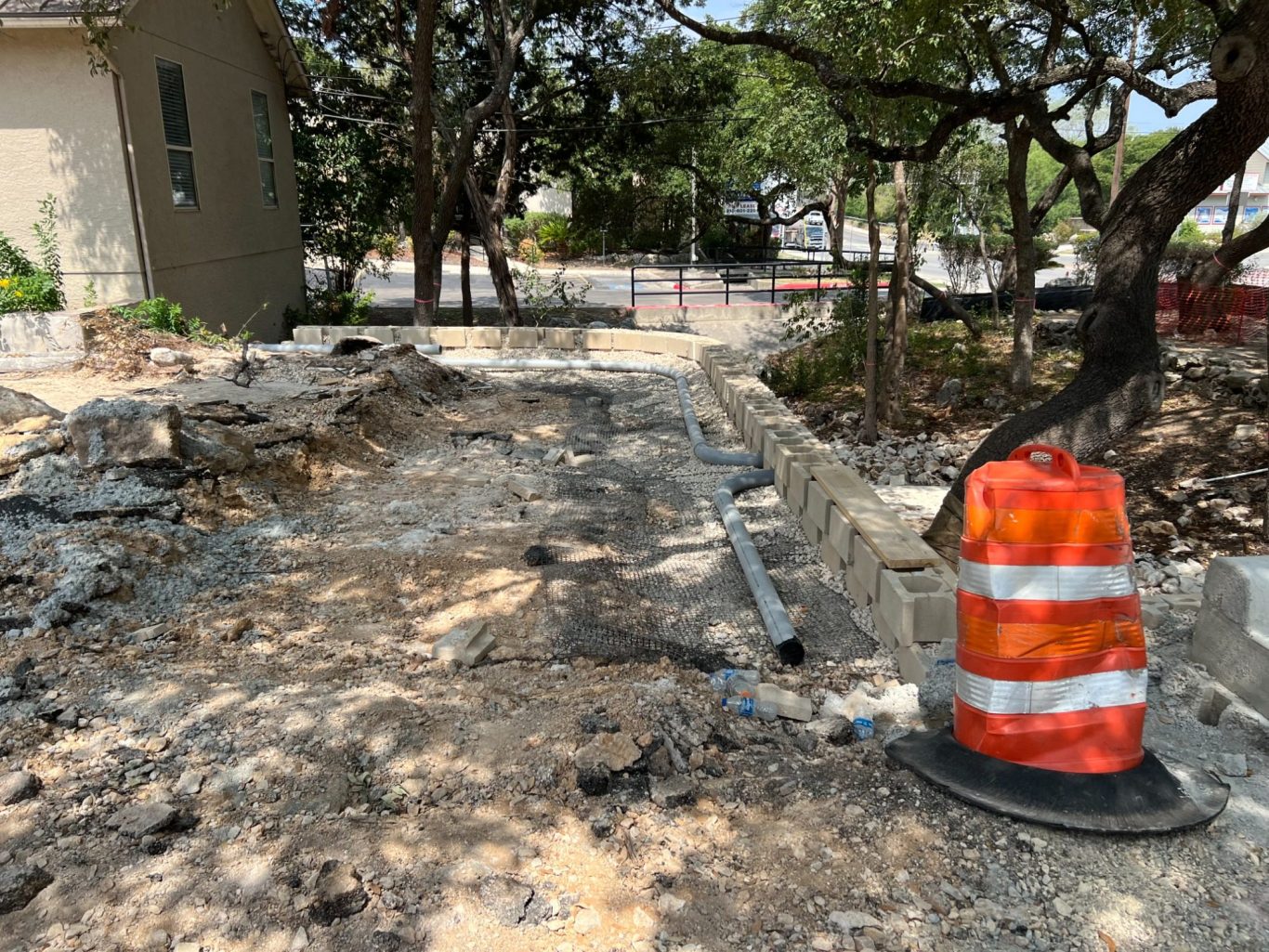

4" Sch-40 Pipe for Tree Lights
4" Sch-40 Pipe for Tree Lights
4" Sch-40 Pipe for Tree Lights

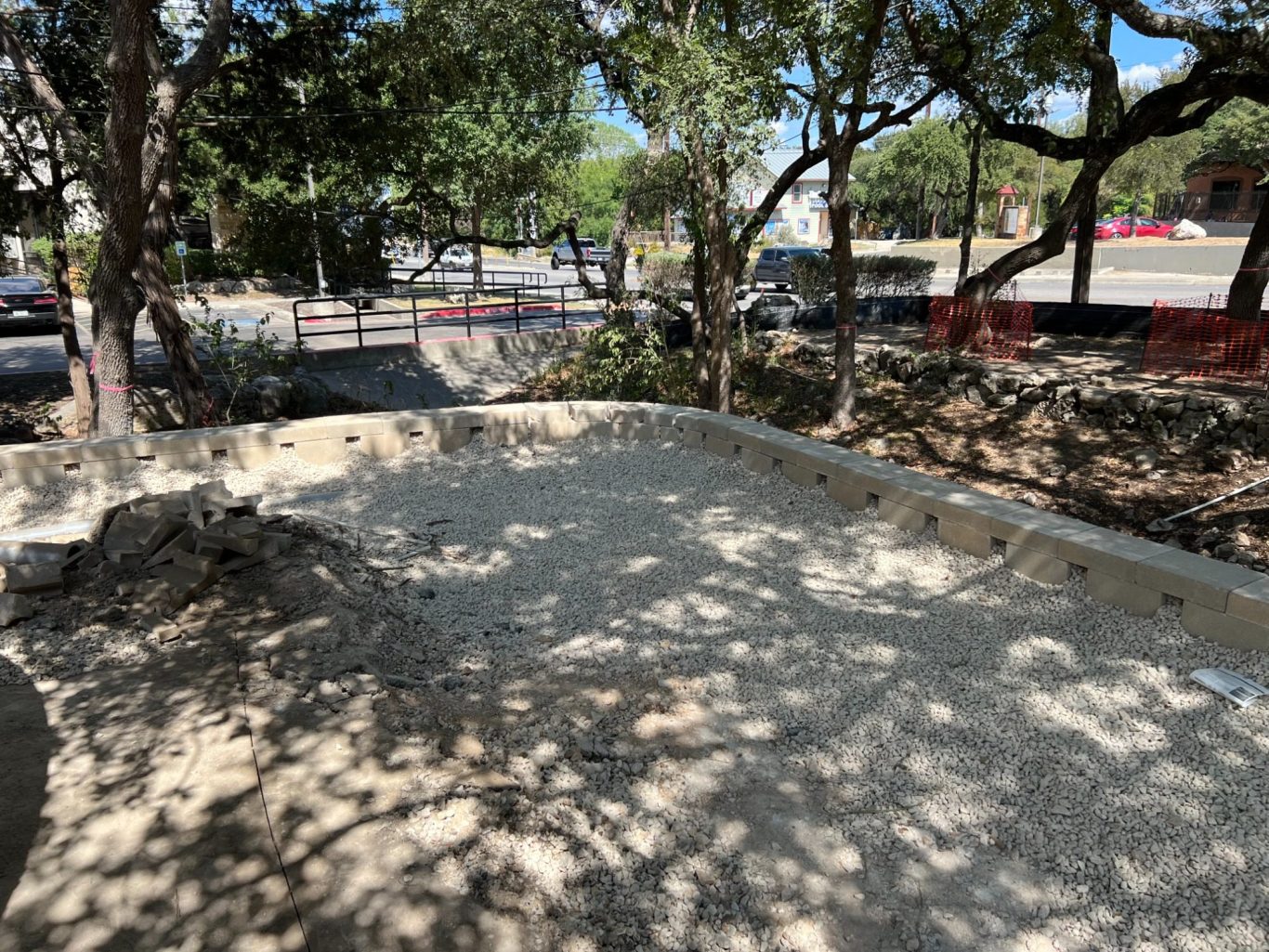

Block Radius Top of Wall at Proposed Parking Lot Elevation, 3/4" Limestone Backfill

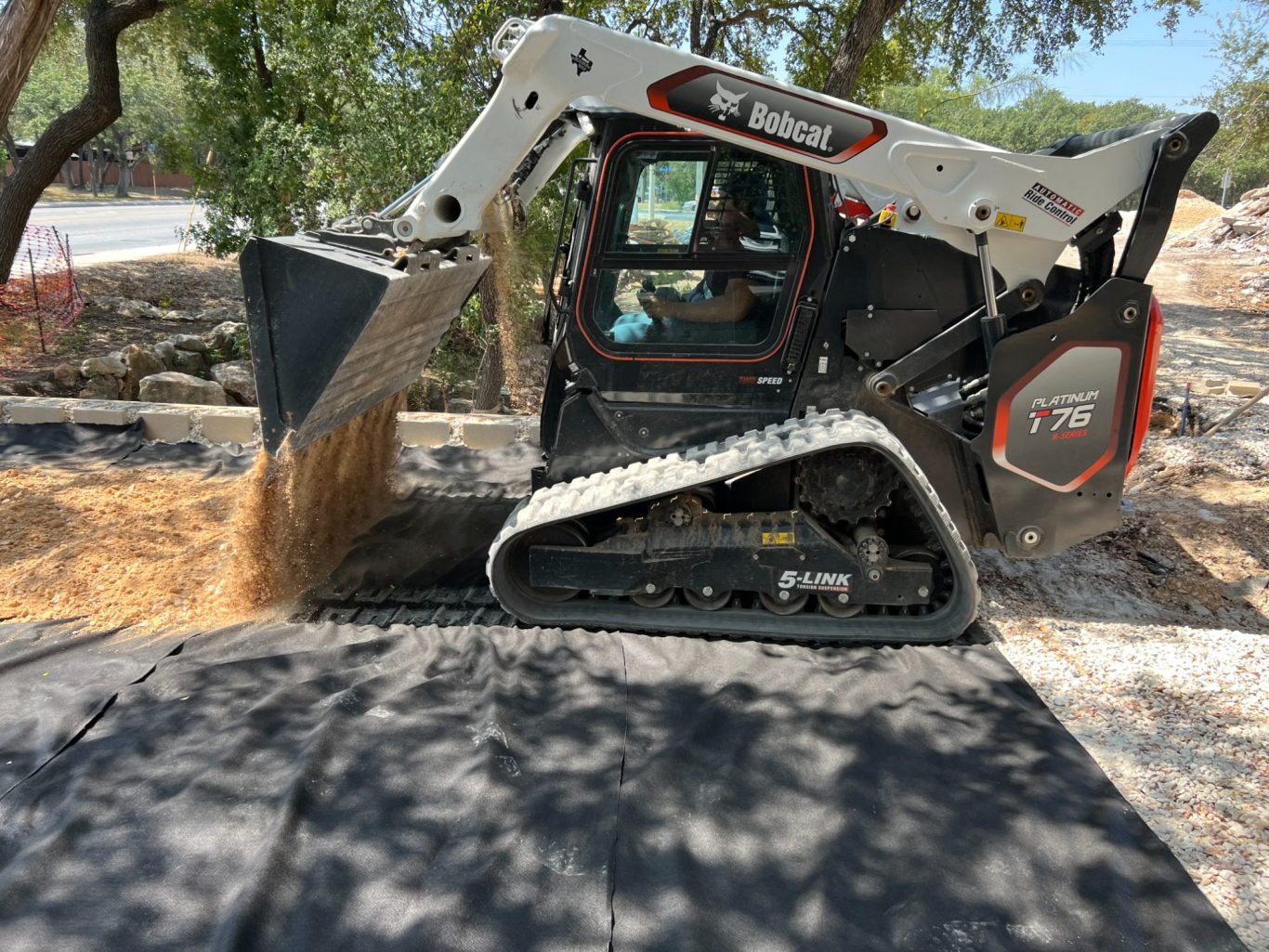

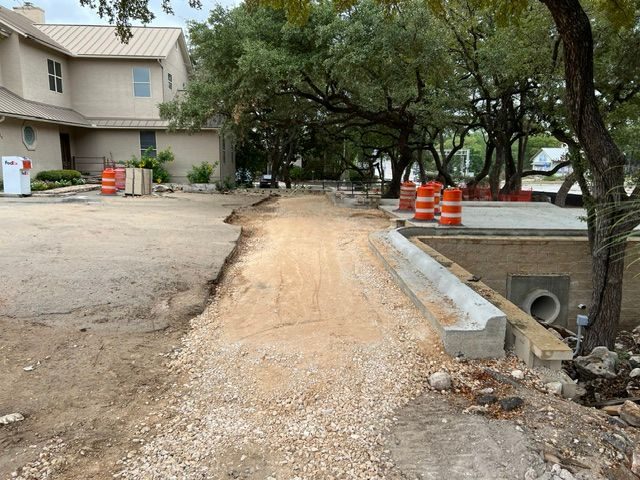

3/4" Base Laid On Top Of Geotextile Fabric

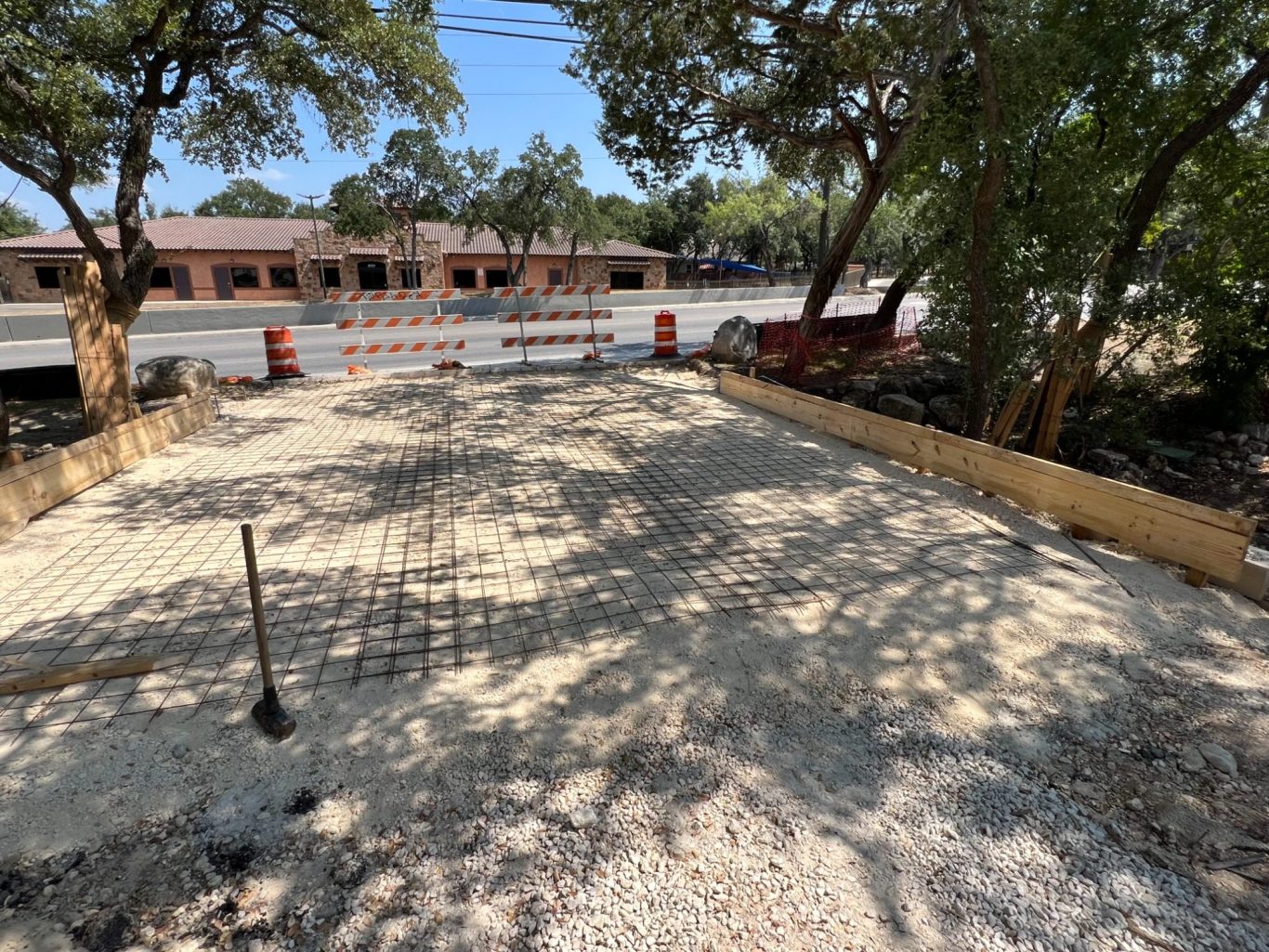

6" X 6" Welded Wire Flat Sheets, Compacted 3/4" Base

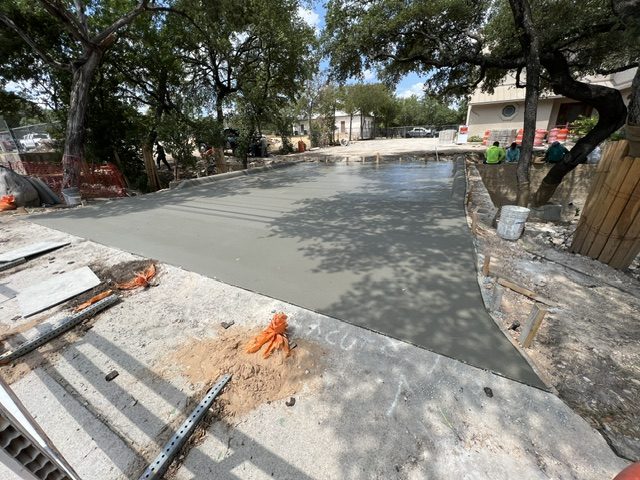

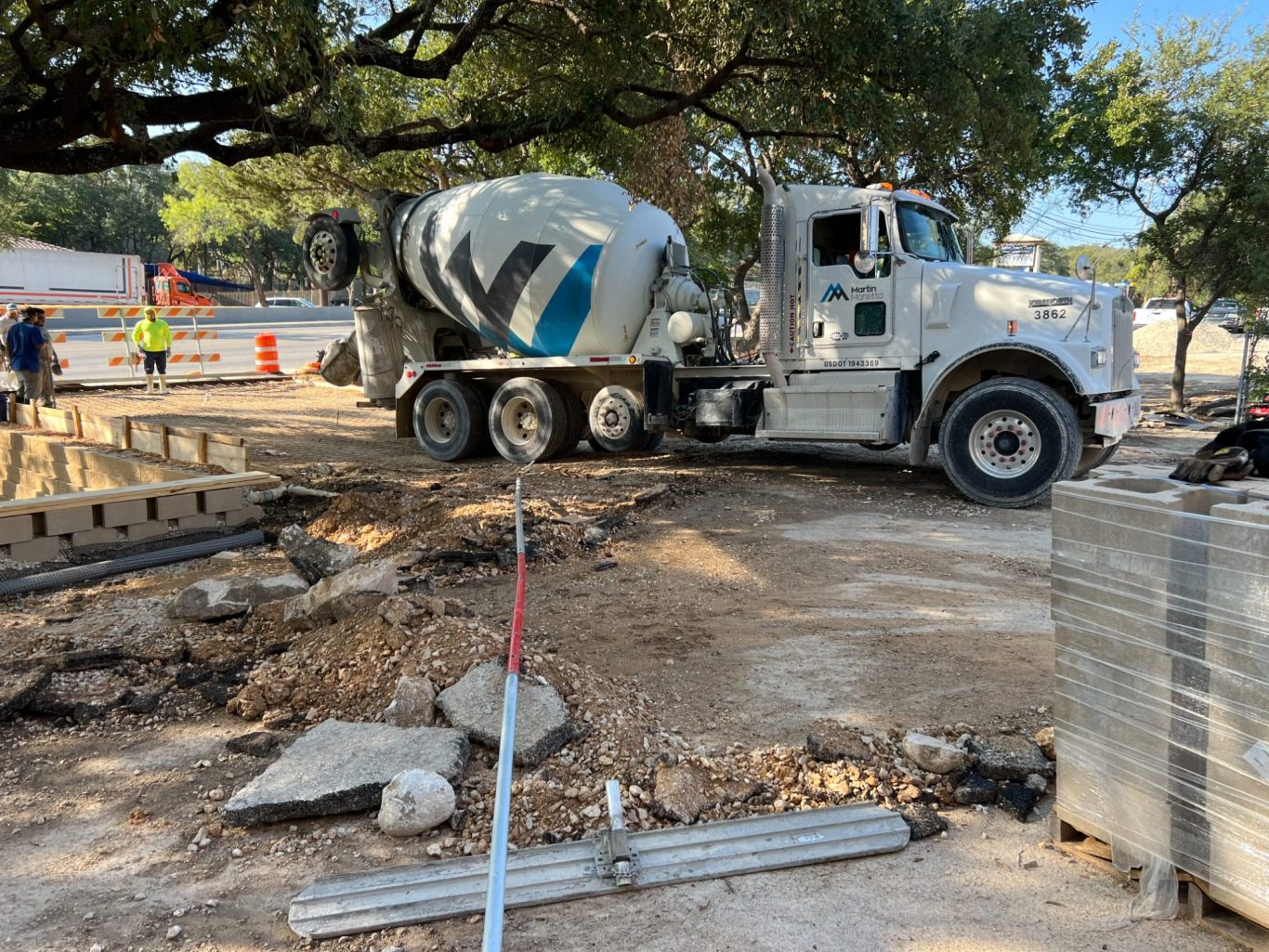

32 Cubic Yards Class C Concrete Driveway

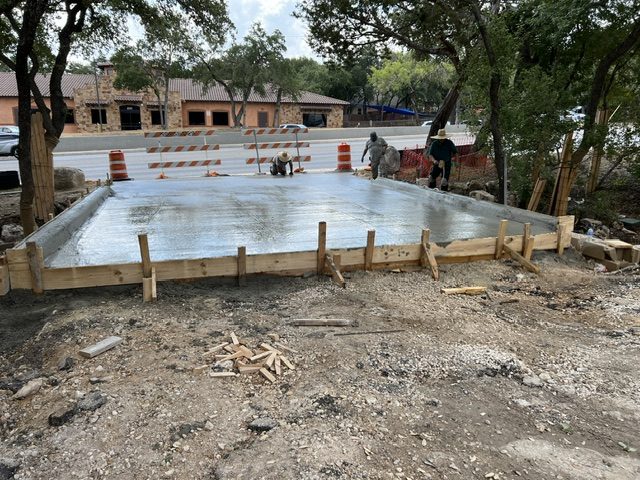

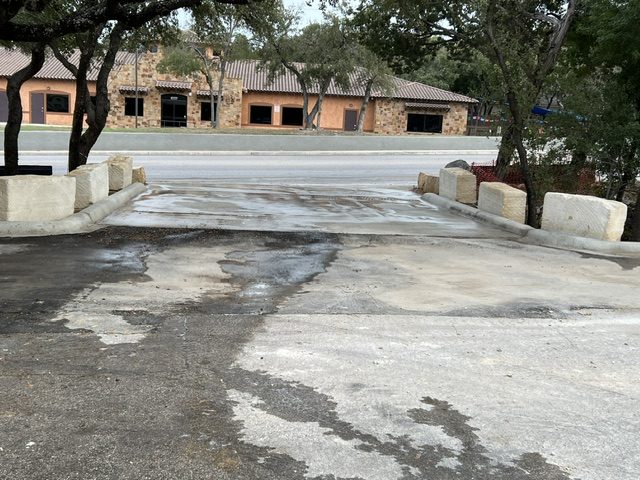

12" Class C Concrete Driveway
12" Class C Concrete Driveway

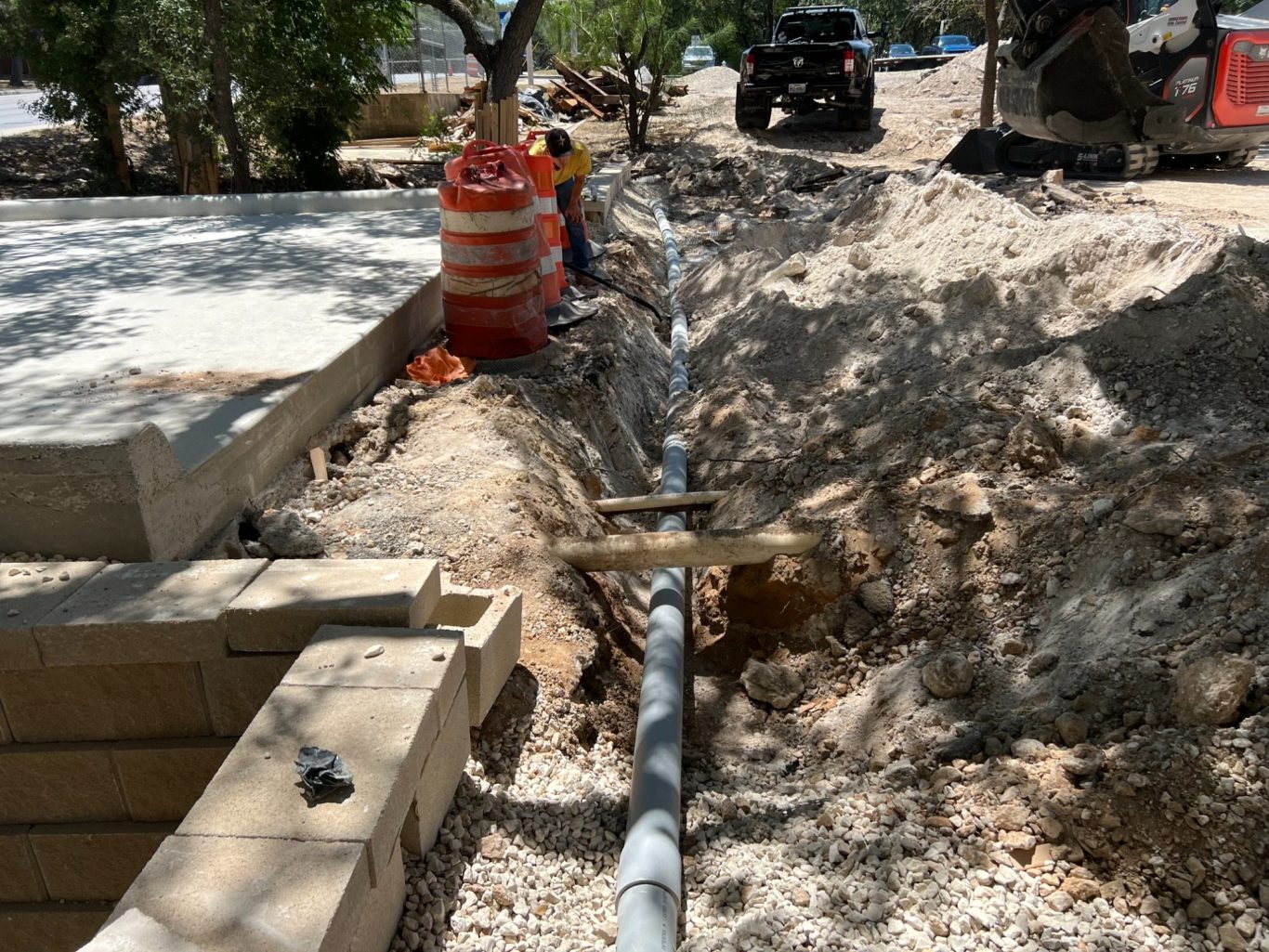

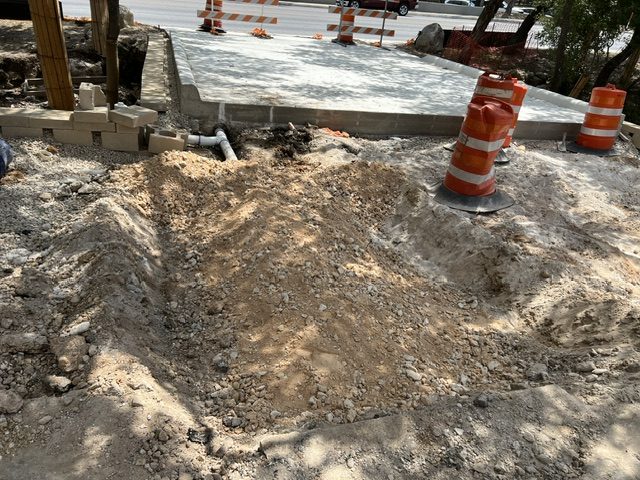

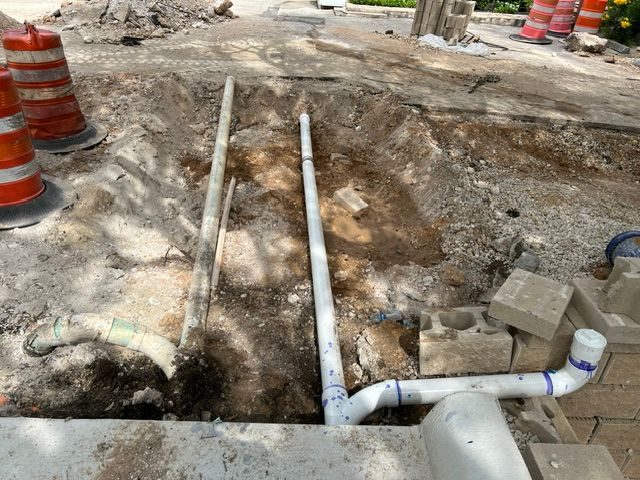

Concrete Saddle Excavation for Utility Pipe Protection
3/4" Base with 12" Toe Down for Utility Pipe Protection

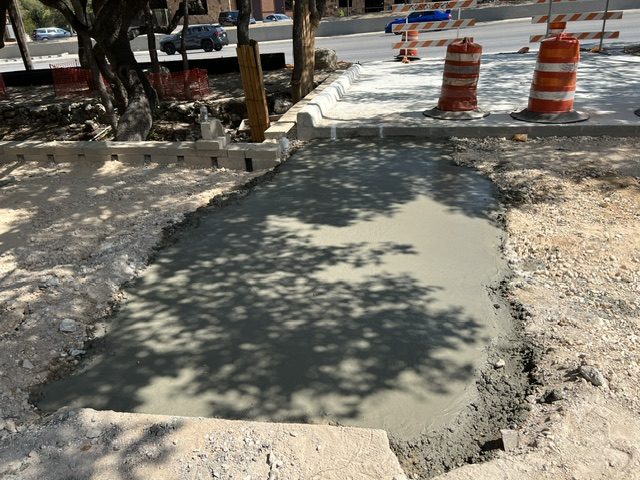

12" Class C Concrete Saddle

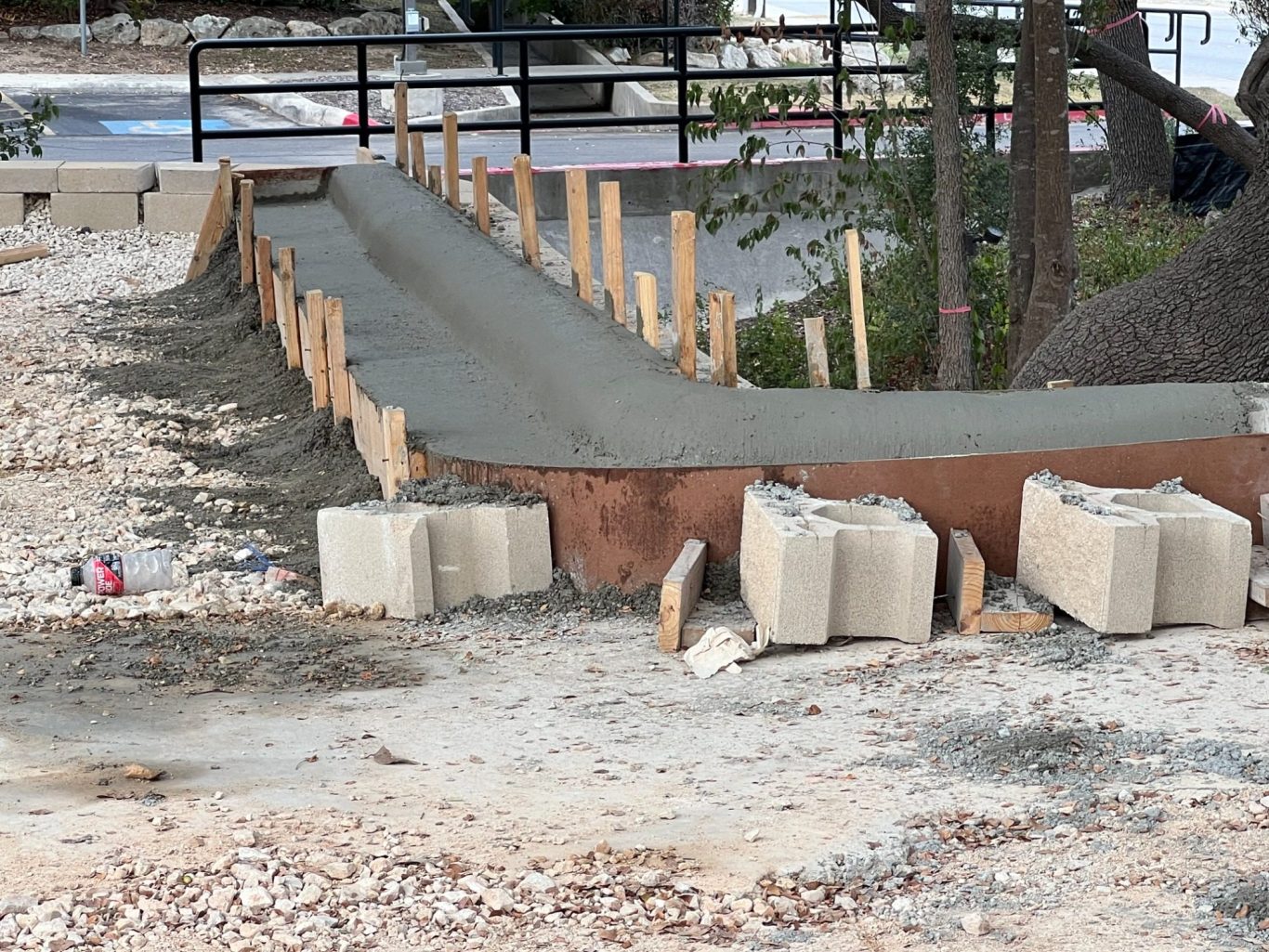

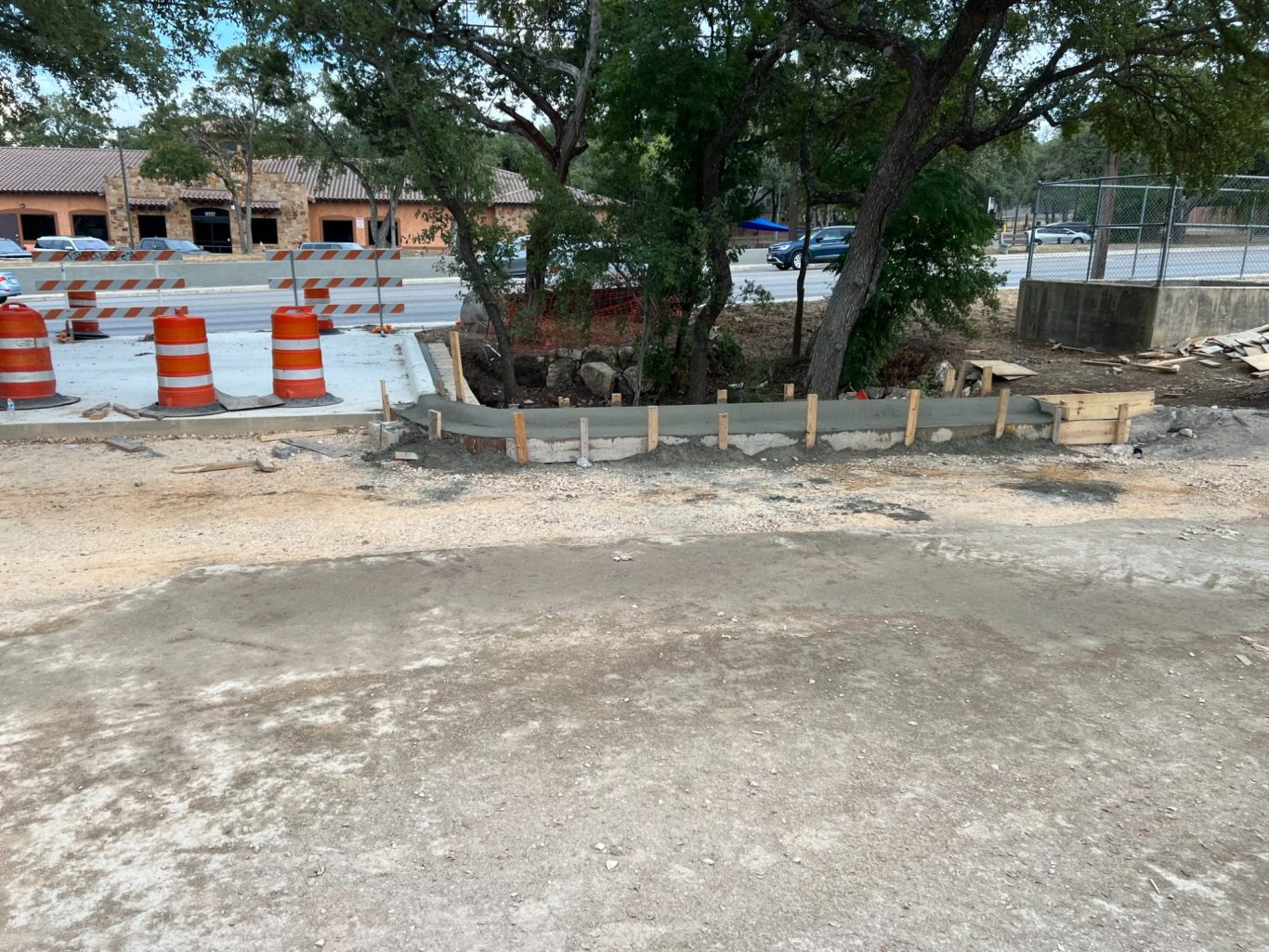

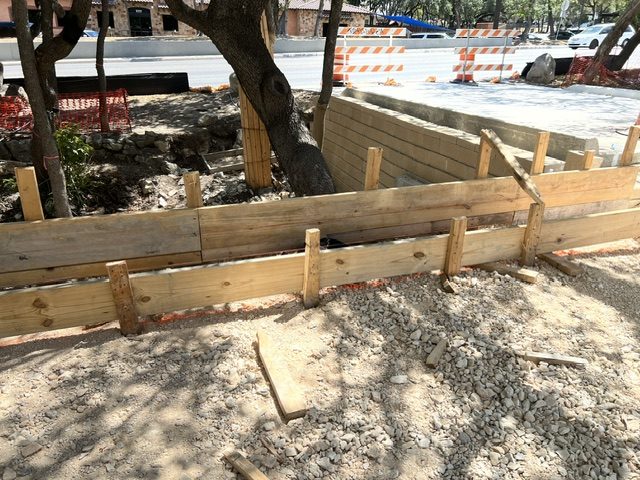

Concrete Curb and Gutter Timber Forms

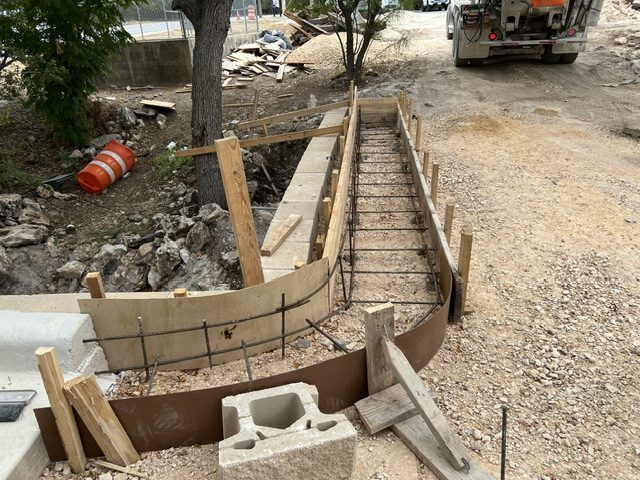

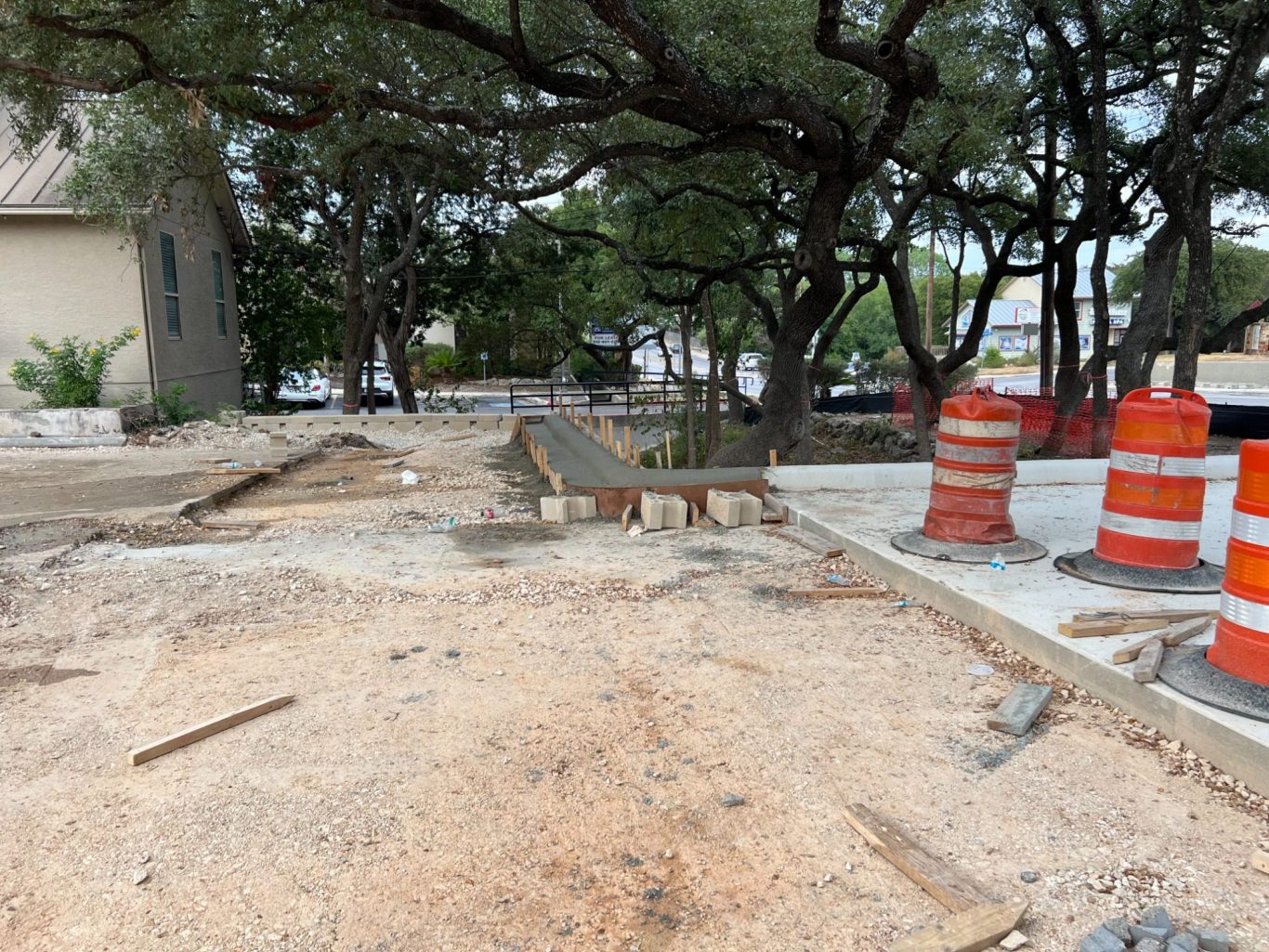

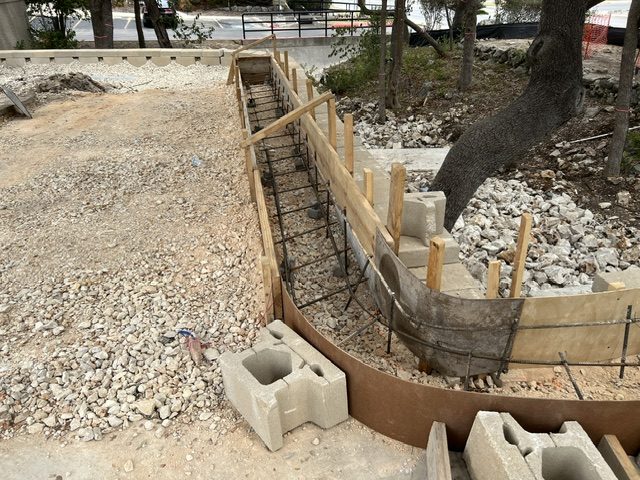

Facing West: Curb and Gutter Timber Forms, and #5 Rebar Installed
Facing East: Curb and Gutter Timber Forms, and #5 Rebar Installed

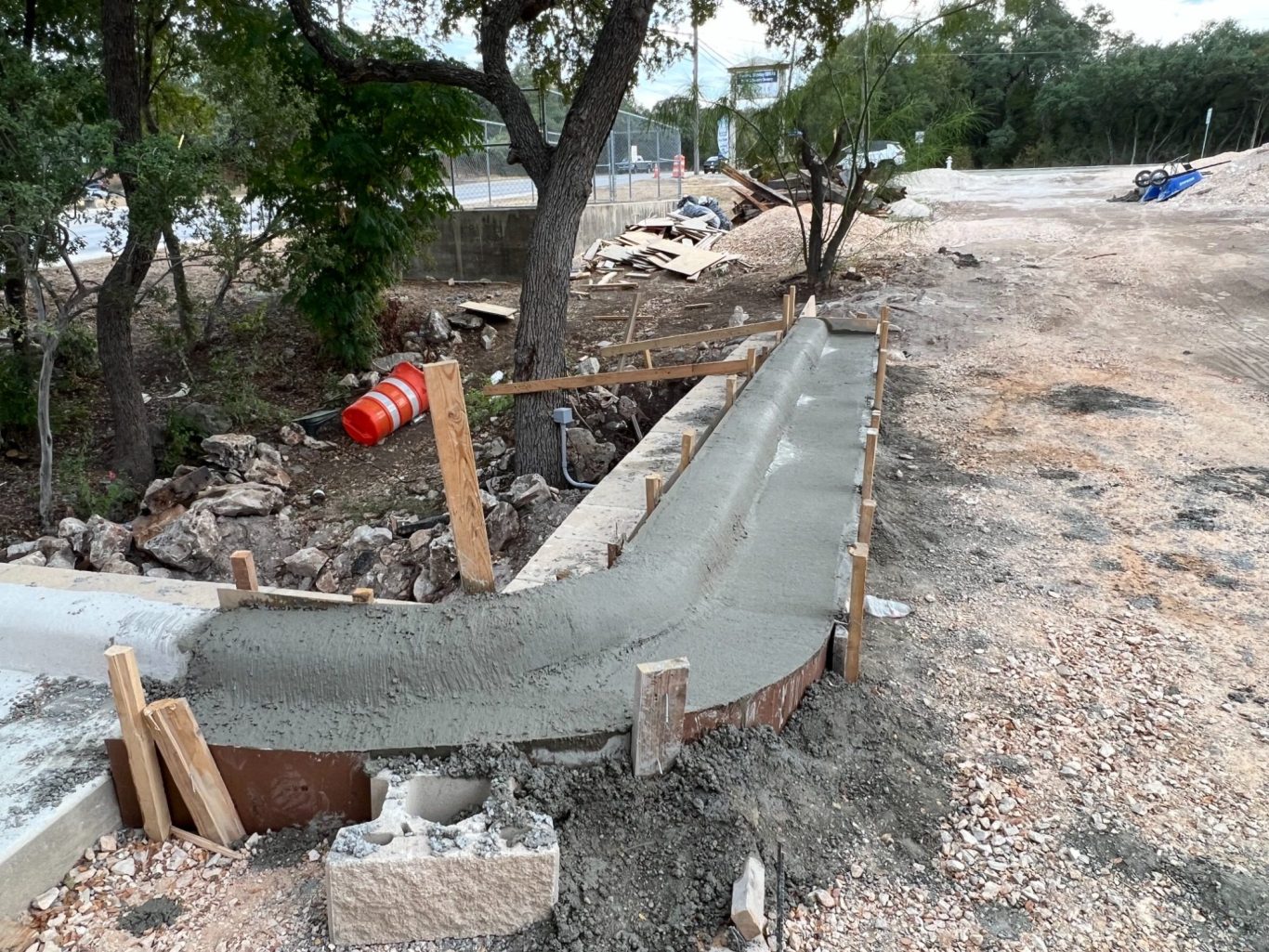

Facing West: Class C Concrete Curb and Gutter
Facing East: Class C Concrete Curb and Gutter
Facing East: Class C Concrete Curb and Gutter
West End: Class C Concrete Curb and Gutter

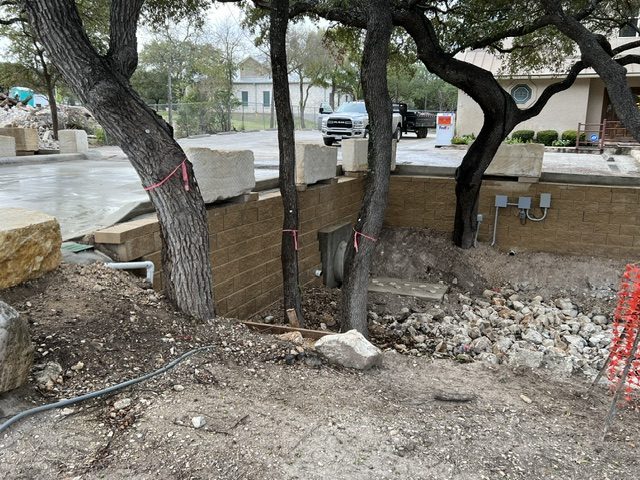

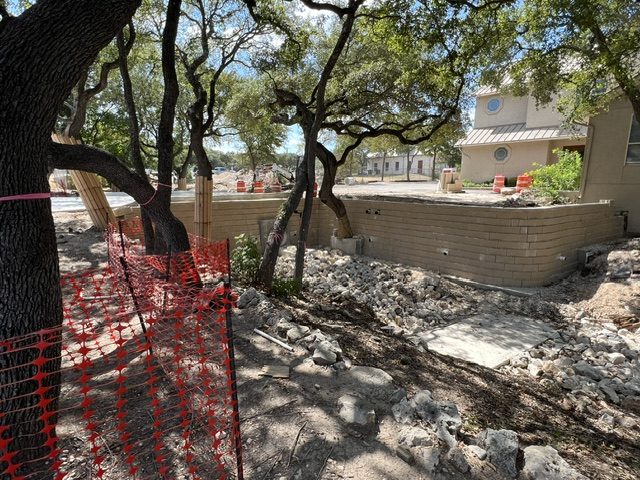

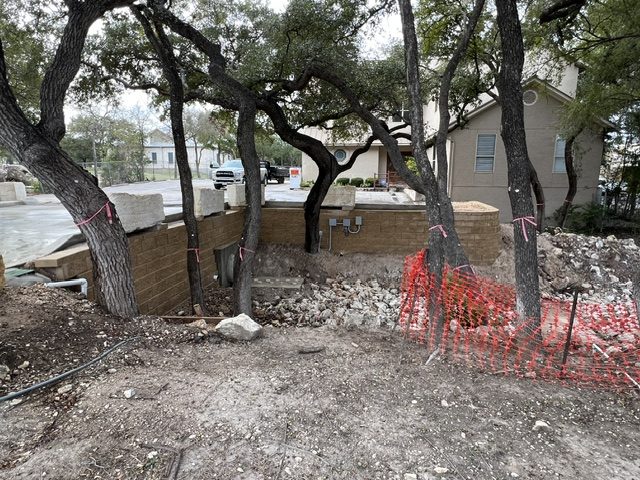

East Wall Before Electrical Connections

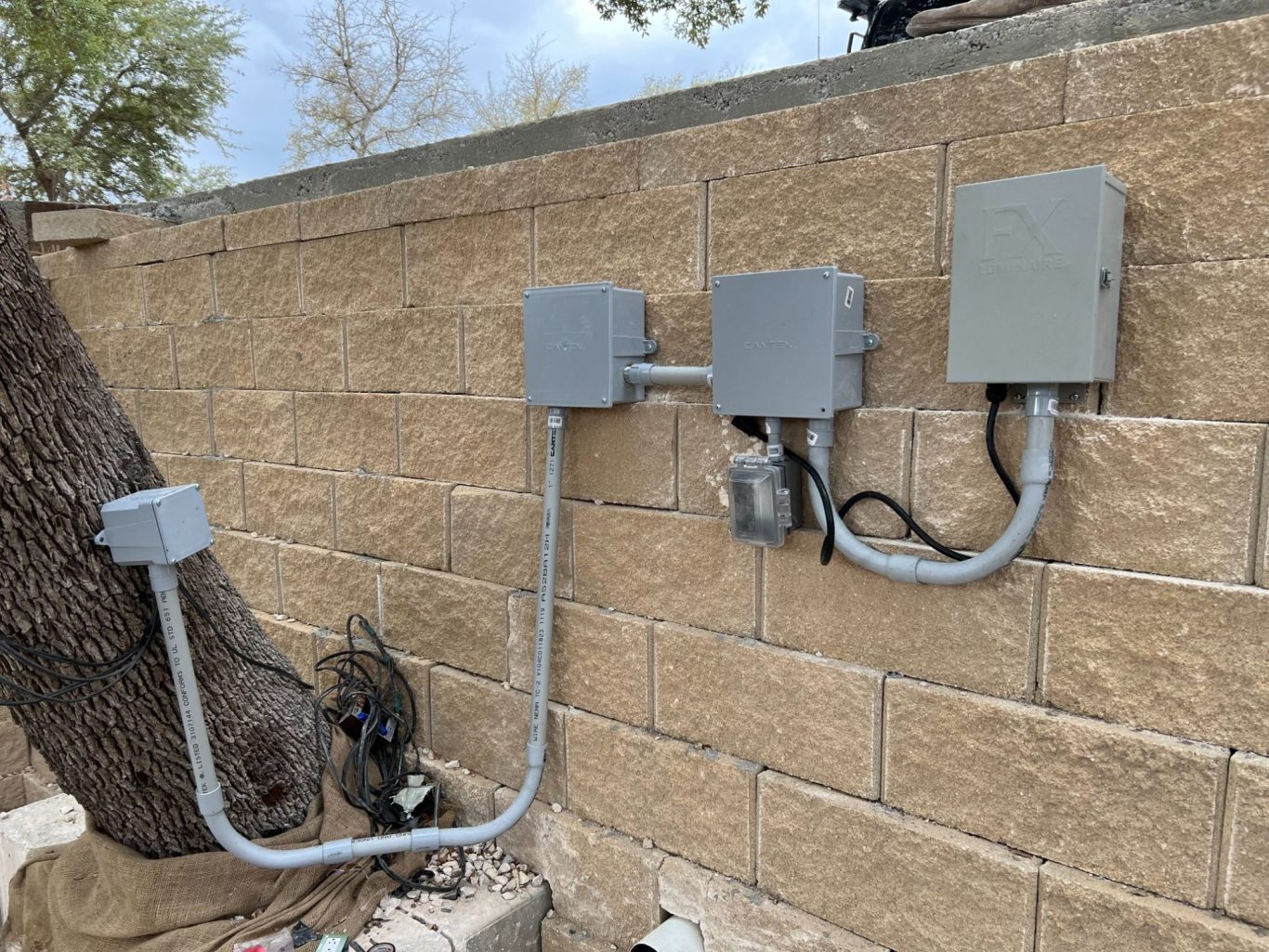

Luminaire FX Transformer Box, Conduit Boxes for Tree Lights

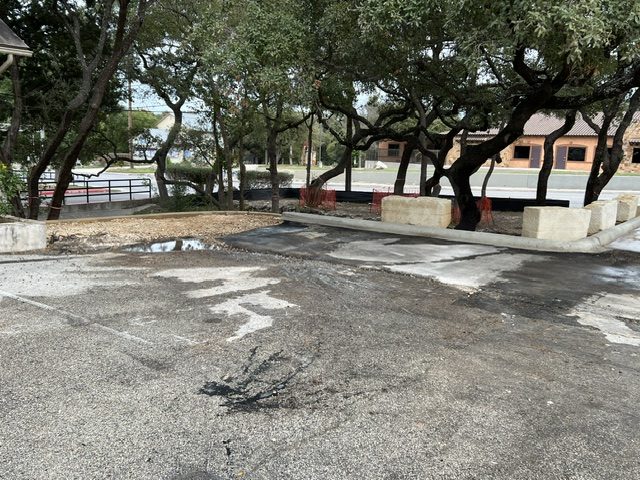

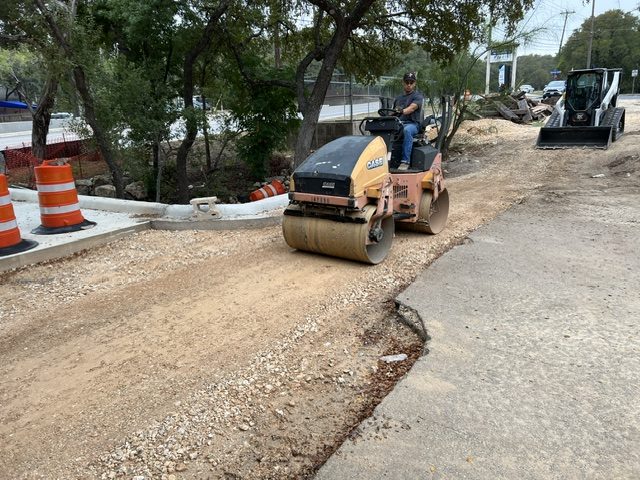

Parking Lot: TxDOT Flex Base Compaction

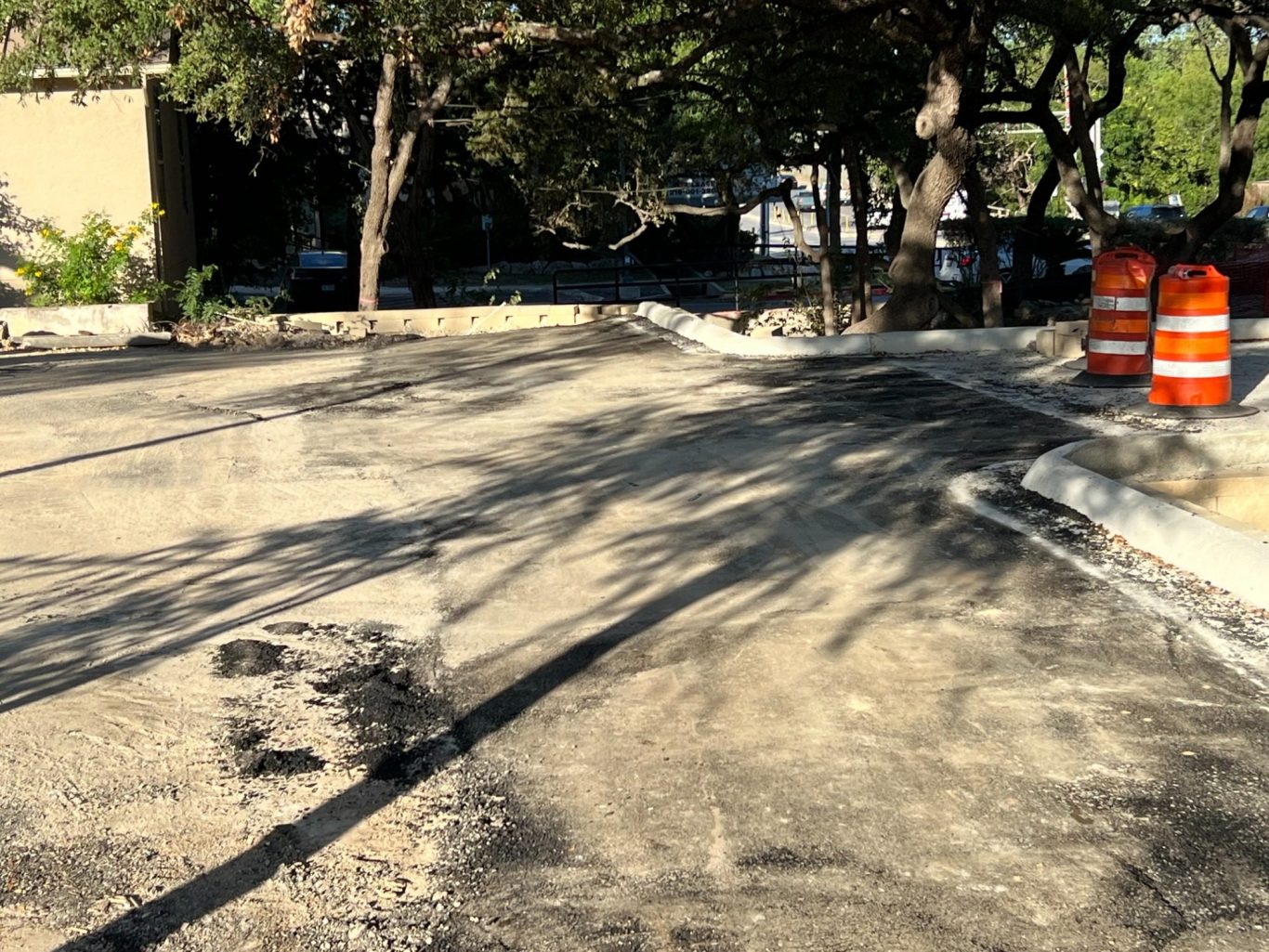

Parking Lot: TxDOT Flex Base Compacted
Paved Parking Lot: 6" B-Boy and 4" D-Dog
Paved Parking Lot: 6" B-Boy, and 4" D-Dog

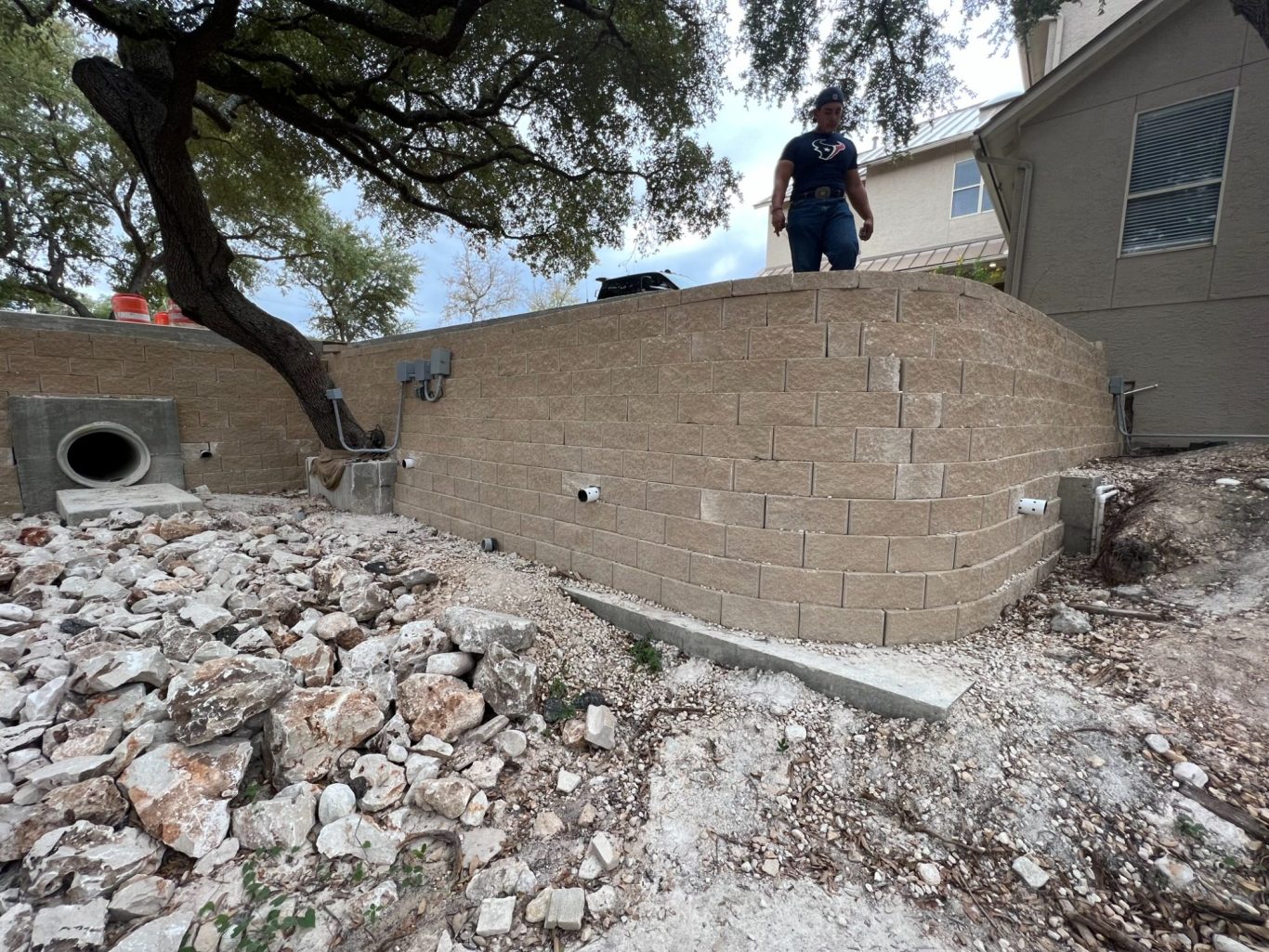

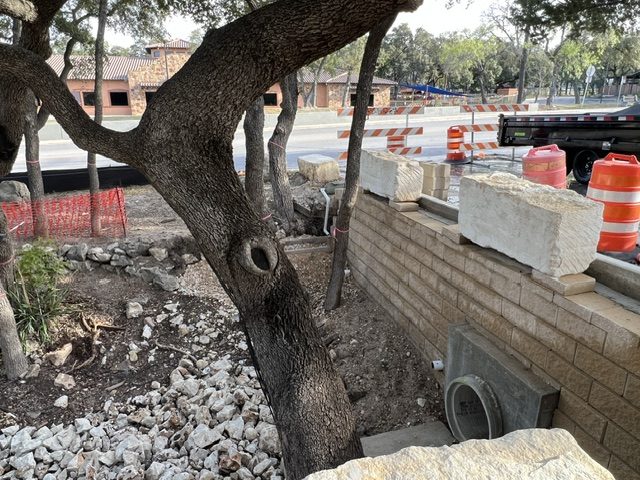

7' Total Wall Height. FX Luminaire Transformer, and Conduit Boxes Installed. Tree Lights connected.

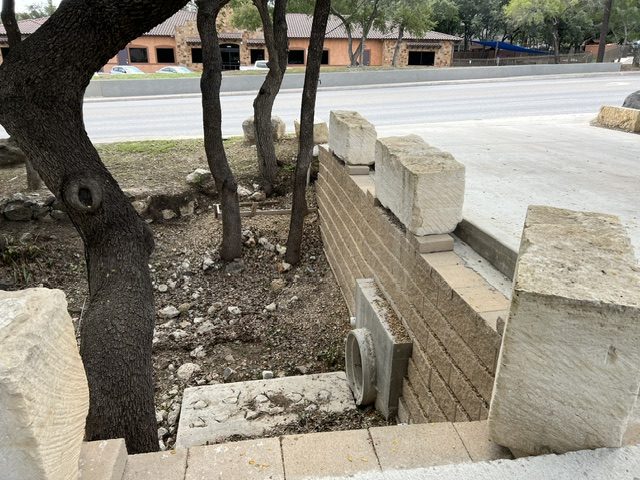

Bridge East End
Bridge East End Corner View
7' Total Wall Height. 2' Below Grade, and 5' From Finished Grade to Bridge Deck
Project Completion
Project Completion. No trees were cut down or removed. Yay!

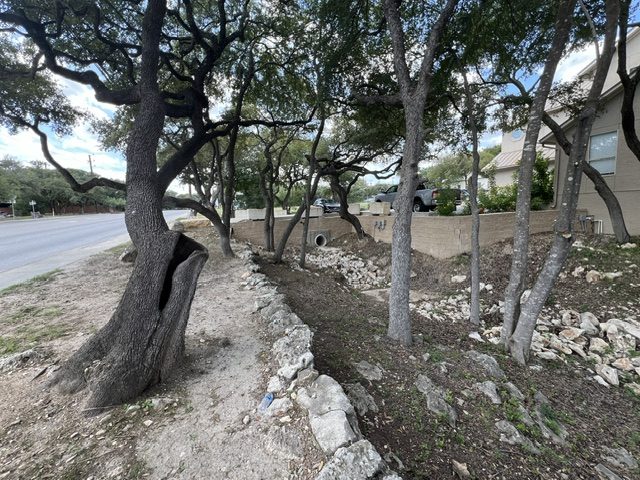

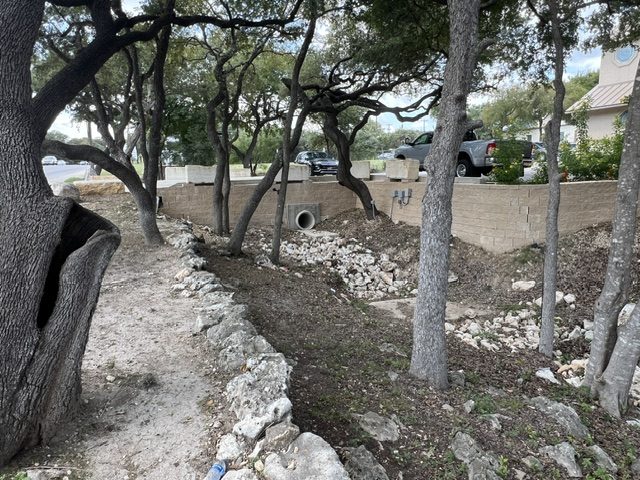

1 Year After Completion

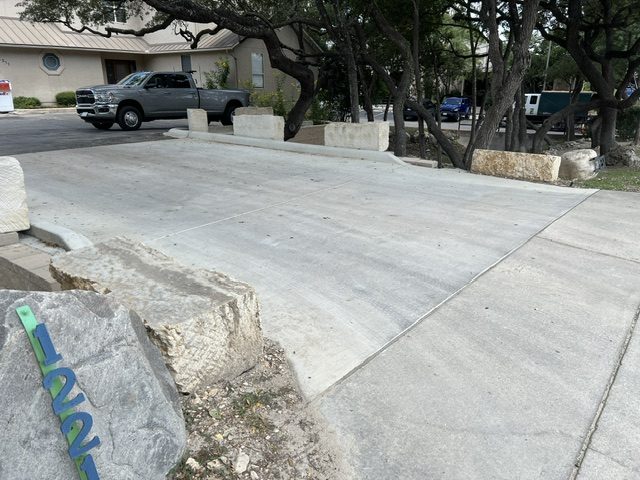

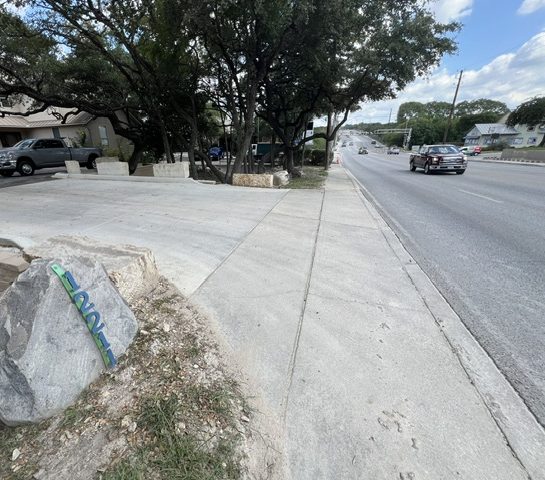

1-Year After Completion: Entrance Facing East

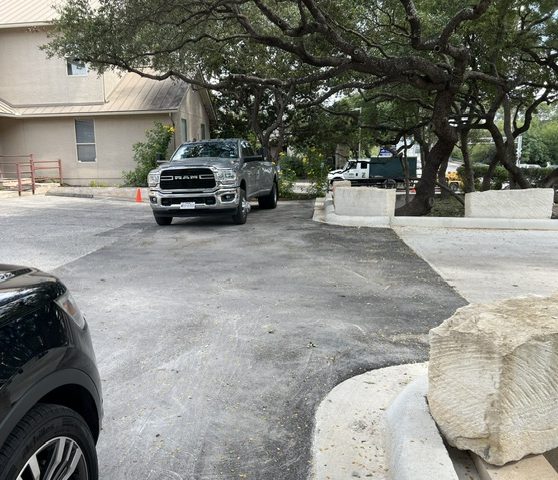

1-Year After Completion: Looking SouthWest at Driveway and Asphalt
1 -Year After Completion: West and East Radius Curb and Gutter, and Asphalt
1-Year After Completion: West End Corner View

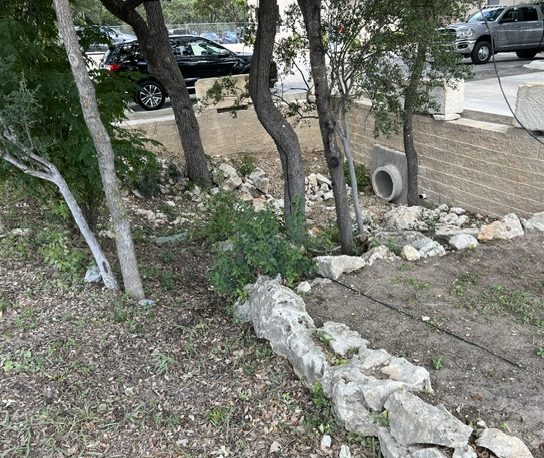

1-Year After Completion: Bridge East Wall Facing South
1-Year After Completion: Bridge East Wall and Retaining Wall
1-Year After Completion: Bridge East Wall and Retaining Wall
1-Year After Completion: Bridge East Wall and Retaining Wall
